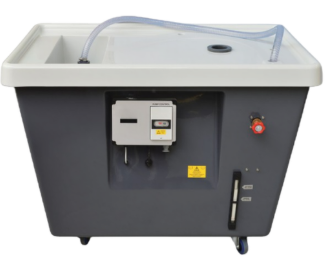

DIGITAL HYDRAULIC BENCH1

Order Code: 24257608.1

Category: General Lab Equipment V

Nett dimensions and weight: 1250 mm long x 780 mm wide x 950 mm high and 50 kg (no water) Approximate packed dimensions and weight: 1.4 m3 and 120 kg Sump tank capacity: 100 Litres minimum and 160 litres maximum Maximum flow: With no experiment mo...



SPECIFICATION

Nett dimensions and weight: 1250 mm long x 780 mm wide x 950 mm high and 50 kg (no water)
Approximate packed dimensions and weight: 1.4 m3 and 120 kg
Sump tank capacity: 100 Litres minimum and 160 litres maximum
Maximum flow: With no experiment module fitted: 50 litres/minute (220V) 47 litres/minute (110V)
Maximum pressure: 450 mbar at working surface
height Flowmeter display: L.s–1 and L.min–1
Resolution: 0.001 L.s–1 and 0.1 L.min–1 Single-phase, earthed
electrical supply (specify on order): • Single phase, 220 - 240 VAC, 50 Hz, 2.5 Amp or
• Single phase, 110 -120 VAC, 60 Hz, 5 Amp or
• Single phase, 220 - 240 VAC, 60 Hz, 2.5 Amp
