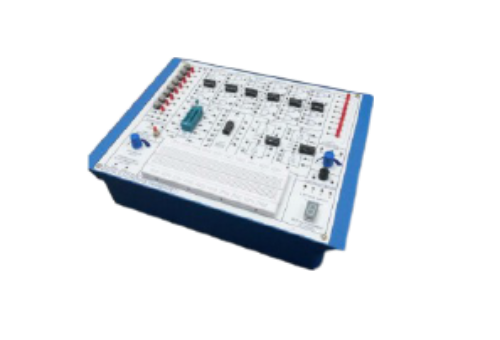

Digital Electronics Trainer Board
Order Code: 21225047.3
Category: General Lab Equipment I
Output Voltage DC Fixed +5V & -5V ±1% Output Current 1000 mA. Load Regulation ±1% Of The Highest Specified Output Voltage.( NO LOAD TO FULL LOAD) Ripple And Noise Less Than 5mV. Clock Pulses 1Hz and 1KHz by manual Pulser....
SPECIFICATION
- Output Voltage DC Fixed +5V & -5V ±1%
- Output Current 1000 mA.
- Load Regulation ±1% Of The Highest Specified Output Voltage.( NO LOAD TO FULL LOAD)
- Ripple And Noise Less Than 5mV.
- Clock Pulses 1Hz and 1KHz by manual Pulser.
- Logic Inputs 8 Bit Data Switches for High/Low.
- Solderless Bread Board 1030 tie Points, accepts: 0.3-.8mm Solid Wire
- Power Power Switch With Indicating Lamp
- ICS Provided And Gate, OR Gate, Not Gate, X-OR Gate (Based on 74 Series)
- 7-Segment Display 2 Digit With Decoder Drive
- Logic Probe Logic?0, Pulser, Logic-1
- 7-Segment Decoder Data in, Data Out
- Output Indicator 8 Bit 5 mm Bright Red LEDS
- Input Power Supply
- AC Input 220V to 240V AC, 50Hz
- Fuse 500mA
- Working Environment Temp. -10 °C-+40°C
- Accessories
- AC Power Cable
- Dimension/Weight
- Dimension 370*245*65* mm
