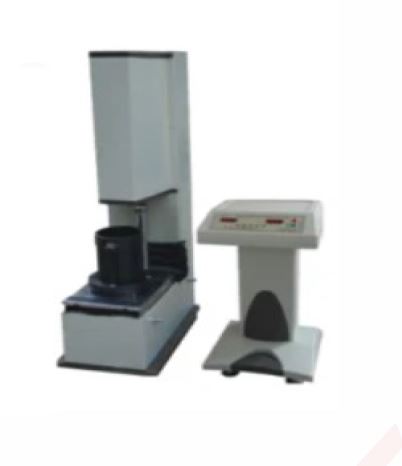

Digital Electric Automatic Portable Compactor

Order Code: 23246711.5

Category: General Lab Equipment II

Technical Specifications:- Instrument automatically compact specimens , eliminating the laborious hand compaction method The height and weight of the rammer are adjustable to suit test requirements. , The rammer travels across the mould and the ta...



SPECIFICATION

Technical Specifications:-

Instrument automatically compact specimens , eliminating the laborious hand compaction method The height and weight of the rammer are adjustable to suit test requirements. , The rammer travels across the mould and the table rotates the mould in equal steps on a base that is extremely stable , the table also pushes forward and pulls back the mould. , Compaction cycle: the mould is pushed forward and rotated , getting six blows at the side in different directions; then pulled back and got one blow in the middle. , The number of blows per layer should be set at the beginning of the test. , Main technical specification , Rammer: Circular faced , 50 mm dia , adjustable to 2.5 kg and 4.5 kg weight , Drop: Adjustable to 300 mm and 450 mm , Motor: 370W , 1400 r/min.
