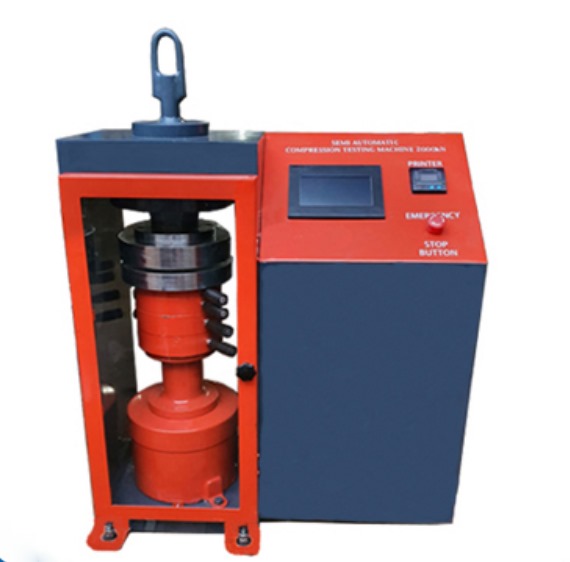

Digital Display Hydraulic Compression Testing Machine (CTM)

Order Code: 24258293.5

Category: General Lab Equipment V

Digital Display Hydraulic Compression Testing Machine should design to conduct compression and crushing strength tests on Containers, Concrete cubes, cylinders, hollow blocks and various other materials in accordance with in...



SPECIFICATION

  • Digital Display Hydraulic Compression Testing Machine should design to conduct compression and crushing strength tests on Containers, Concrete cubes, cylinders, hollow blocks and various other materials in accordance with international standard.

  • The machine should electro-hydraulically operate.

  • The Control Panel should comprise of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, and Output Print-out of Test Data.

  • Efficient hydraulic power packs

  • Economic machines ideal for site use Designed to meet the need for a simple, economic and reliable means of testing concrete.

  • The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes 200mm, 150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.

  • Digital readout is a microprocessor-controlled instrument which is fitted as standard to all digital machines in the range.

  • Calibrated accuracy and repeatability are better than 1% over the upper 90% of the working range.

  • Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes, cylinders, hollow blocks and various other materials in accordance with international standard.

  • The machine is electro-hydraulically operated.

  • The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, and Out-put Print-out of Test Data.

  • Max. Testing power: Mix. 2000kN

  • Measuring range: 0-2000kN

  • Relative indication error: ±1% or better

  • Testing power Precision: grade1

  • Size of the bearing plate: Min. 320×260mm

  • Max. distance between the up and down bearing plates: Min. 310mm

  • Max. piston stroke: 90mm

  • Rated pressure of the hydraulic pump: 40MPa

  • Power: AC220V±10% or AC380±10%

  • Outside size: Min. 950×400×1160mm

  • Max. Piston lift speed: 50mm/min.

  • Piston free back speed: 20mm/min.

  • Net weight: Max. 850KGS

  • Noise: ≤80Db
