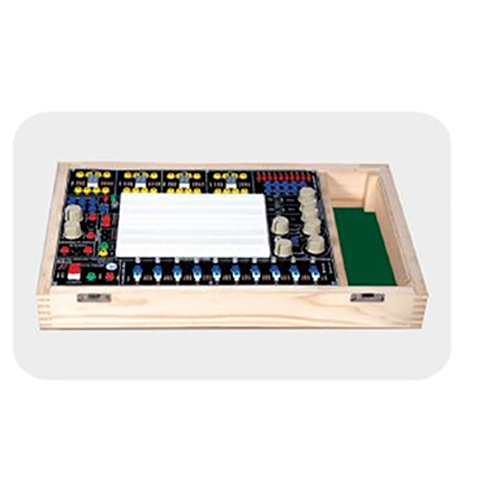

Digital Design Laboratory

Order Code: 18193692.7

Category: General Lab Equipment III

Specification: Solder less breadboard : AD-200 Interconnected nickel plated contact socket with a total of 1896 tie points fits all components with DIP size and solid wire in diameter of AWG #22-30 (0.3 ~ 0.8 mm Variable DC power: Positive ou...



SPECIFICATION

Specification:

  • Solder less breadboard : AD-200 Interconnected nickel plated contact socket with a total of 1896 tie points fits all components with DIP size and solid wire in diameter of AWG #22-30 (0.3 ~ 0.8 mm
  • Variable DC power: Positive output voltage : 0 ~ +15V Negative output voltage : 0 ~ -15V ±10% Maximum output current : 300 mA. Line regulation : < 0.05% / V (Ta=25°C) Load regulation : < 30mV (Ta=25°C
  • Fixed power supply: Positive output voltage : +5V ±10% Maximum output current : 1 Amp. Line regulation : < 50mV. Load regulation : < 100mV. Negative output voltage : -5V ±10% Maximum output current : 100mA
  • Line regulation : < 25mV. Load regulation : < 30mV
  • Frequency ranges: 0.1 Hz to 2 Hz; 1 Hz to 20 Hz; 10 Hz to 200 Hz; 100 Hz to 2 K Hz; 1K Hz to 20K Hz; 10K Hz to 200K Hz
  • Sine wave output : 0 to 5 Vpp ±10% variable
  • Triangle wave output : 0 to 5 Vpp ±10% variable
  • Square wave output : 0 to 15 Vpp ±10% variable
  • TTL mode output : +5V ±10%
  • 3½ digits LED display 4 ranges: 0 to 199.9V full scale; 0 to 19.99V full scale; 0 ~ 1.999V full scale; 0 to 199.9mV full scale
  • Ιnput impedance : 10MΩ for any range
  • Universal Counter Frequency range : 1Hz to 99.999999 MH
  • Input signal: TTL or CMOS level or any level (Vmin ≥ +2.3Vp ±10%)
  • Period range TH & TL : 0.01μs to 999999.99μs ; 1μs to 99999999μs
  • Frequency range : 1Hz ~ 99.999999MHz
  • Display : 8-digit 7-segment LED display
  • Counter switch : External / internal
