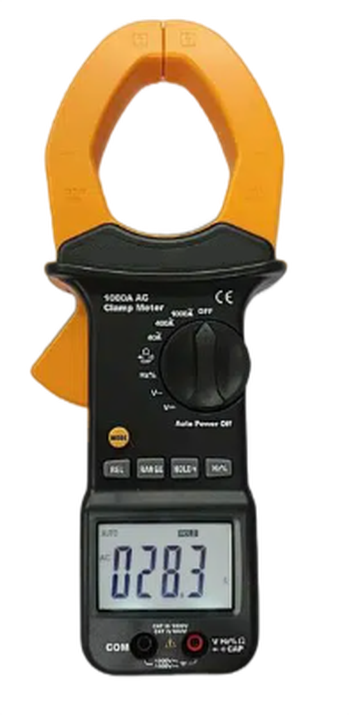

Digital Clamp Meter

Order Code: 22235997.48

Category: General Lab Equipment I

ACA 199.9/600A ±(2.0%+5) 0.1A ACV 199.9/600V ±(1.5%+5) 0.1V Resistance 199.9Ω ±(1.9%+3) 0.1Ω Continuity Buzzer sounds at less than approx. 100Ω Open voltage: approx. 0.1V Sampling rate Approx. 2 times...



SPECIFICATION

  • ACA 199.9/600A ±(2.0%+5) 0.1A
  • ACV 199.9/600V ±(1.5%+5) 0.1V
  • Resistance 199.9Ω ±(1.9%+3) 0.1Ω
  • Continuity Buzzer sounds at less than approx. 100Ω Open voltage: approx. 0.1V
  • Sampling rate Approx. 2 times/sec.
  • Bandwidth 50-400Hz
  • Display 1999
  • Clamp diameter/Conductor size Φ25mm/10×30mm
  • Battery R03×2
  • Battery life Approx. 250 hrs.
  • Size/Mass H187×W50×D29mm/Approx. 210g
  • Safety standards IEC61010 CAT.?300V/CAT.?600V
