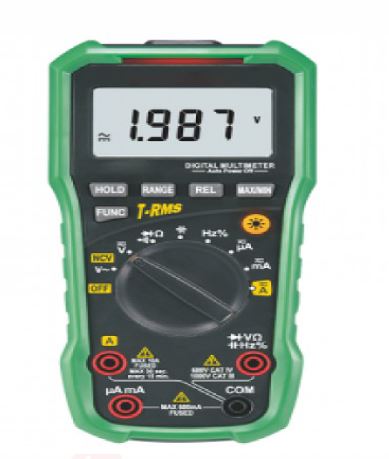

Digital Automotive Multimeter

Order Code: 23246991.10

Category: General Lab Equipment III

Technical Specifications : Automotive Tester Large LCD display min (55 mm x 34 mm) Multi-function measurement. DCV, ACV, DCA, ACA, Resistance, Capacitance, Inductance, Frequency, Temperature, Diode, Continuity beeper, TACH, DWELL, POINT, 20...



SPECIFICATION

Technical Specifications :

  • Automotive Tester
  • Large LCD display min (55 mm x 34 mm)
  • Multi-function measurement. DCV, ACV, DCA, ACA, Resistance, Capacitance, Inductance, Frequency, Temperature, Diode, Continuity beeper, TACH, DWELL, POINT, 2000A Clamp
  • Safety: Meet IEC 1010 CAT III 1000 V safety requirement.
  • 6000 counts A/D, high resolution.
  • DC Voltage:
  • Range: 600.0 mV /6 V/60 V/600 V /1000 V
  • Accuracy: ±(0.5% + 2d) 600 mV; ±(0.8% + 1d) 6 V, 60 V, 600 V, 1000V
  • AC Voltage (True RMS):
  • Range: 600.0 mV /6 V/60 V/600 V /1000 V
  • Accuracy: ±(1% + 2d )
  • DC Current (True RMS):
  • Range: 10 A / 6 A
  • Accuracy: 6 A ± (1.5 % + 5d); 10 A ± (1.5 % + 2d )
  • AC Current (True RMS):
  • Range: 10 A / 6 A
  • Accuracy: 6 A ± (1.5 % + 5d); 10 A ± (1.5 % + 2d )
  • Resistance:
  • Range: 600 Ω /6 KΩ /60 KΩ /600 KΩ /6 MΩ /60 MΩ
  • Accuracy: 600 ohm : ± ( 1 % + 2d ); 6K/60K/600K/6 M : ± ( 1.5 % + 2d ); 60 M : ± ( 3 % + 5d )
  • Diode Range: 2.9 Volt DC
  • Capacitance:
  • Auto Range: 600 pF/6 nF/60 nF/600 nF/6 uF/60 uF/100 uF/600 uF
  • Accuracy: 600 pF ± ( 2.5% + 5d ); 6 nF/60 nF/600 nF/ 6 uF/60 uF ± ( 1.5% + 5d ); 100 uF/600 uF ± ( 5% + 5d )
  • Frequency:
  • Range: 600 Hz/6 KHz/60 KHz/600 KHz/6 MHz/20 MHz
  • Accuracy: ± ( 0.5% + 2d )
  • Temperature:
  • Range: -100º C ~ 1000º C
  • Accuracy: ± ( 1% + 1º C)
  • TACH:
  • Range: 500 -30000RPM
  • Accuracy: ± ( 1% + 2d )
  • DWELL:
  • CYLINDER: 3 CYL/ 4CYL/ 5CYL/ 6CYL/ 8CYL/ DUTY CYCLE
  • Range: 0-120°/ 0-90°/ 0-72°/ 0-60°/ 0-45°/ 0-100 %
  • Accuracy: ± ( 1 % + 2d )
  • Point:
  • Range 60V DC: 0.2V (Change); 0.2V (Good)
  • Accuracy: ± ( 1.2% + 2d )
  • Power: DC 9 Volt battery
