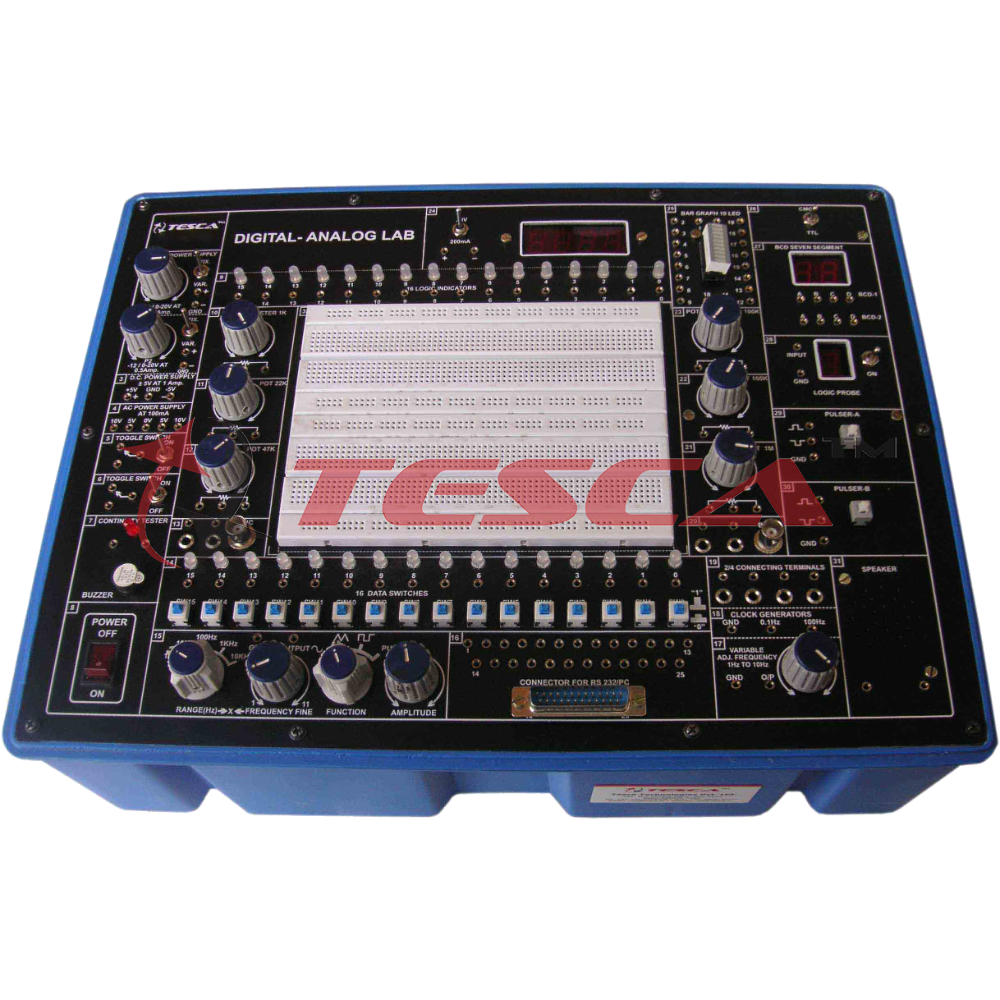

Digital And Analogue Electronic Trainer

Order Code: 22235697.17

Category: General Lab Equipment I

Features: Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strip swith 100 tie points each, totaling to 1680 tie points. (Size:112mm x...



SPECIFICATION

Features:

  • Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strip swith 100 tie points each, totaling to 1680 tie points. (Size:112mm x170mm)
  • Regulated DC Power Supply : 5 V at 1 Amp, -5 V at 1Amp, 12 V/ 0 to 20V at 500mA, and -12 V/ 0 to -20 V at 500 mA
  • AC Supply : 5-0-5V, 10-0-10V at 100mA. Can be used as 5V, 10V, 15V, 20V, and also as center tap
  • Function Generator : Sine / Square / Traingular / Pulse waveform frequency 1 Hz to 110 Khz in 5 Steps. Variable in between steps. Sine / Square / Traingular waveform output 50mV ~ 10Vpp variable
  • Clock Generators : 0.1Hz and 100 Hz, Independent fixed TTL 5V outputs
  • Variable Clock Generators : low frequency variable clock 1 Hz to 10 Hz Fixed TTL 5V output
  • Pulser Switch : 2 independent buffered bounce free manual pulser (useful for freezing the action of each stage of the counter after every clock pulse)
  • Data Switch : 16 independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination
  • Logic Indicators : 16 independent buffered logic level indicators for High / Low status indication of digital outputs
  • Speaker : 8 ohms miniature speaker with terminations
  • Digital meter (3½Digit) : Dual range DC Voltmeter 0-20V / Ammeter 0-200mA
  • Continuity Tester : For testing the continuity. Provided with Beeper Sound
  • Potentiometers : 6 Potentiometers (1K, 22K, 47k, 100K, 100K and 1Meg) with terminals
  • BNC to banana adapter : 2 Nos. BNC to 2 channel banana adapter
  • Computer interface : Facilities connecting your trainer to either Rs232 communication port of PC ADAPTER using 25 pin (male) connector through 25 nos. of 2 mm banana sockets
  • On Board Switches : 2 Switches singal pole double through
  • Connecting terminals : 2 / 4 connecting terminals
  • Seven segment LED Display : 2 Nos. BCD to Seven Segment Decoder/ Driver IC with terminals
  • LED Bar Graph : With 10 LED Indicators and 20 termination
  • Logic Probe : Logic level indicator for TTL/CMOS
  • Power : 230 V ± 10%, 50 Hz
  • Accessories : Mains cord, Operating and Experimental manual, Red & Black patch cords (2mm with Pin) 10 each, Red & Black patch cord (Pin to Pin) 10 each & Component Set
  • Instruction manual : Strongly supported by detailed operating instructions
  • Weight : 6 Kg. (Approx)
  • Dimension : W 412 x H 150 x D 310
