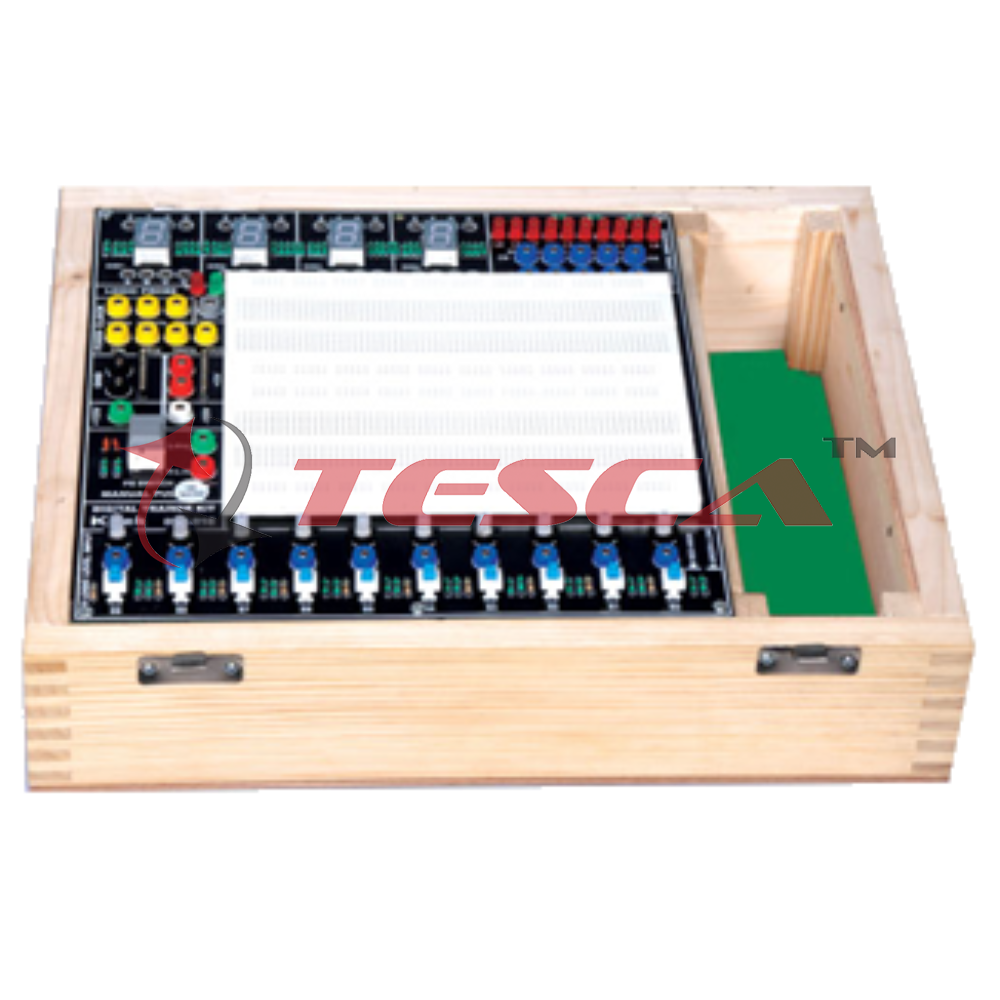

Digital - Analog Trainer Kit

Order Code: 33503A

Category: Bread Board Trainers

Specifications Indicators 10 TTL/CMOS Logic Level Inputs with Dual Color LED indication for logic low and logichigh. 10 LED for output indication. Clock Generator Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz &a...



SPECIFICATION

Specifications

  • Indicators
    • 10 TTL/CMOS Logic Level Inputs with Dual Color LED indication for logic low and logichigh.
    • 10 LED for output indication.
    • Clock Generator
    • Fixed Clock generation of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz.
  • Pulse Generator
    • Logic Pulsar provides single pole double throw bounce less pulses of Low to High and High to Low transitions
  • Logic Probe
    • Logic Probe facility provided with LED indicators to indicate Logic High, Low & Tristate.
  • Bread Board Area
    • Four Distribution Strip of 100 tie points each totaling 400 tie points
    • Two Terminal Strip of 630 tie points totaling 1260 tie points.
  • Display
    • Four digit seven-segment LED display.
  •  Power Supplies
  • Fixed DC Power Supply: 5V, ±12V.
  •  Interconnections
    • All interconnections are made using 2mm banana Patch cords.
  • All ICS are mounted on IC Sockets.
  • Bare board Tested Glass Epoxy SMOBC PCB is used.
  • Attractive Wooden enclosures of Light weight Australian Pine Wood.
  • Set of 2mm Patch cords for interconnections
  • User's Manual with sample experimental programs
