Determining the gauge factor of strain gauges

Order Code: 23246417.18

Category: General Lab Equipment II

Investigation of deflection and strain to determine gauge factor bending  bar with 2 strain gauges on the compression side and tension side respectively strain gauge configured as full bridge 2-point ball bearing mounting of bar p...



SPECIFICATION

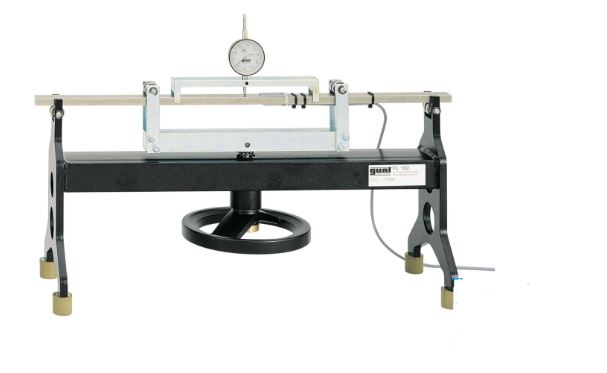

Investigation of deflection and strain to determine gauge factor bending  bar with 2 strain gauges on the compression side and tension side respectively strain gauge configured as full bridge 2-point ball bearing mounting of bar permits purely bending load application mechanical load application device with spindle, handwheel and cross-arm dial gauge with adjustable  dial for direct measurement of deflection measuring amplifier with 4-digit Digital display



Technical data
Bending bar made of steel: 660x25x12mm Strain gauge application full bridge, 350 Ohm 2  strain  gauges  on  the  top  and  underside  of the bar respectively Amplifier measuring range: ±2mV/V resolution: 1μV/V zero balancing adjustment range: ±1mV supply voltage: 10VDC Dial gauge 0...20mm graduation: 0,01mm 230V, 50Hz,1 nhan ev, OUHZ, 1 phase, 120V, 60Hz, 1 phase UL/CSA optional Dimensions and weight LxWxH: 660x200x430mm  Weight: approx 20kg full experiment and operations
