Determination of Electronic charge and the work function of a photo metal using photo electric cell (vacuum type)

Order Code: 55838

Category: Physics Trainers

  55838 Experimental setup has been designed specifically to Determine the Electronic Charge and the Work Functionof a Photo Metal Using Photo Electric Cell (Vacuum Type) The experimental set-up is absolutely self contained and requires no ot...



SPECIFICATION


55838 Experimental setup has been designed specifically to Determine the Electronic Charge and the Work Functionof a Photo Metal Using Photo Electric Cell (Vacuum Type) The experimental set-up is absolutely self contained and requires no other apparatus.
Practical experience on this set up carries great educative value for Science and Engineering Students.

OBJECT
  1. To Study the Photo Electric Effect and to Determine Electronic Charge and the Work Function of a Photo Metal Using Photo Electric Cell (Vacuum Type ).

FEATURE

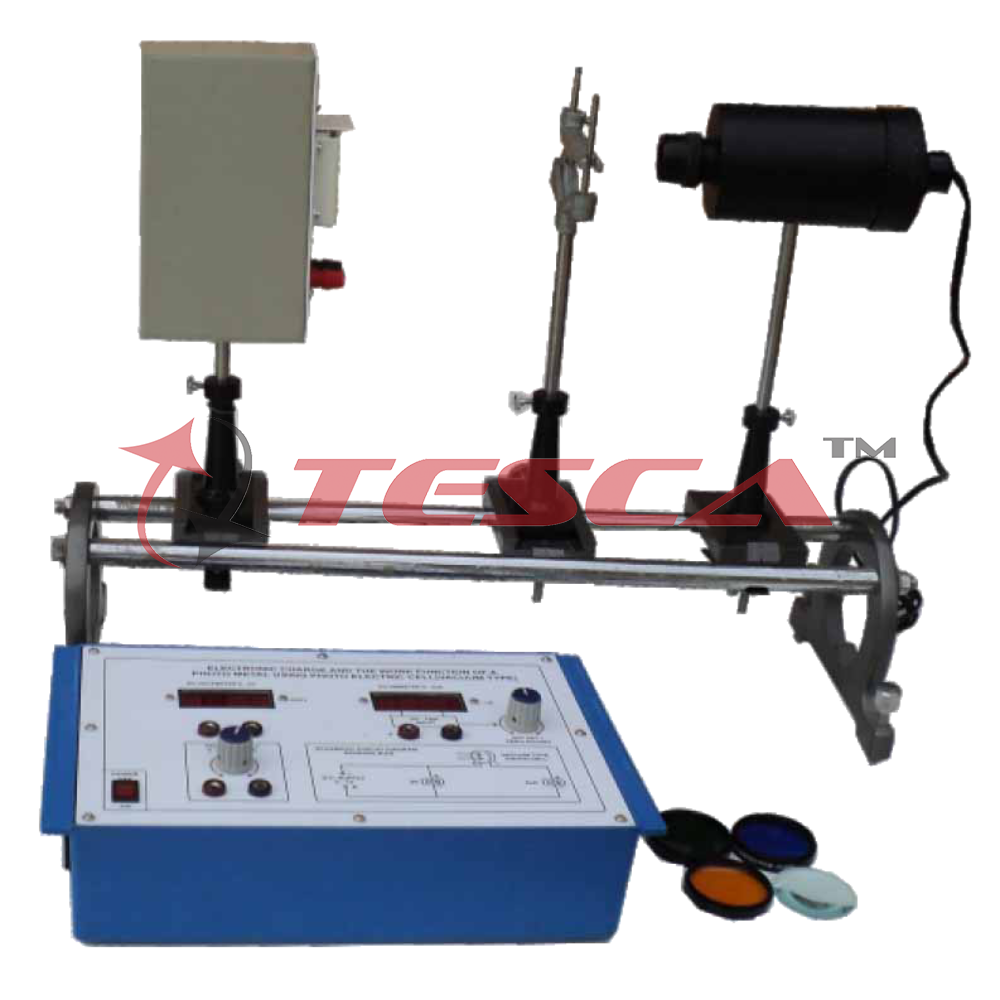

The complete experimental Set-up consists of :
  1. One board with following built in parts :
    • 0-1V at 10 mAvariable power supply.
    •  Digital panel meter 3½ digits having range 2 V.
    • Digital panel meter 3½ digits having range 2µA.
    • Main ON / OFF Switch and Fuse.
    • Good Quality, reliable terminal/sockets are provided for connections.
  2. LAMP HOUSE : With 100 W Bulb.
  3. VACCUM TYPE PHOTO CELL: Mounted in an Iron Box.
  4. OPTICALFILTERS : 3 Nos. Orange, Blue, Green.
  5. OPTICALBENCH : Two 50 c.m. long steel rods ½ " dia. forming a bench with end supports having Leveling screws. One of two steel rods is graduated in c.m. and m.m. It has three riders, two with transverse motion and one is fixed.
  6. LENS HOLDER : One lense holder.
  7. CONVEX LENS : 50mm Dia and 10cm Focal Length. 08 Dimension : W 340 x H 125 x D 210
  8. Adequate no. of patch cords stackable 4 mm spring loaded plug length 50cm.
  9. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
