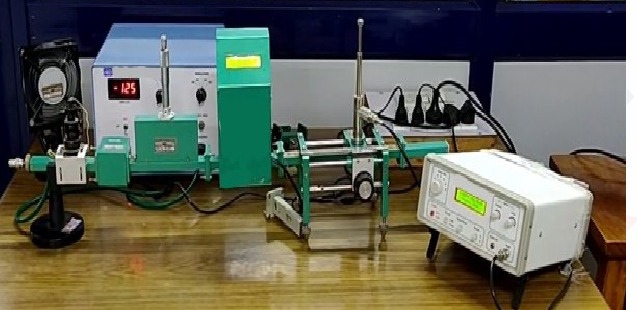

Design and Characterization of Polar Pattern, and Gain of Waveguide Antenna
Order Code: 24258147.1
Category: General Lab Equipment V
Technical Specifications ? Variable Attenuator ? Connection: BNC socket ? Waveguide type: R100 ? Load Terminator ? Gunn Oscillator ? Gunn diode module, length = 27 mm ? Rear housing wall ? Diaphragm with aperture = 8 mm diameter ? Waveguide ...
SPECIFICATION
Technical Specifications
? Variable Attenuator
? Connection: BNC socket
? Waveguide type: R100
? Load Terminator
? Gunn Oscillator
? Gunn diode module, length = 27 mm
? Rear housing wall
? Diaphragm with aperture = 8 mm diameter
? Waveguide adapter = 32 mm
? Aluminium Gunn-diode module
? Horn Antenna
? Frequency range: 8 GHz to 12 GHz
? Gain: 15 dB at 10 GHz
? Waveguide type: R 100
? Material - Aluminium
? Stand rod with rotating table
