Deflection of Beam Apparatus

Order Code: 20214240.1.3.4

Category: General Lab Equipment II

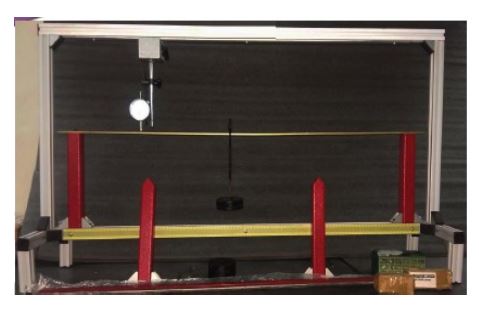

Deflection of Beam Apparatus has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams. Relation between the deflections and the applied loads. Bench-top unit. Struct...



SPECIFICATION

  • Deflection of Beam Apparatus has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams.
  • Relation between the deflections and the applied loads.
  • Bench-top unit.
  • Structure of anodized aluminum and stainless steel.
  • Metallic guide with a graduated ruler for positioning the different supports.
  • 2 Removable stainless steel supports.
  • 1 Removable stainless steel cantilever support.
  • Dial gauge, 0-25 mm range and 0.01 accuracy.
  • It allows experimentation with beams up to 1000 mm length for their study.
  • Three test rectangular beams (made of stainless steel) with different cross sections and 1 m. of length are supplied.
  • The unit allows test as:
  • cantilever beam.
  • beam fixed at one end and simply supported at the other end.
  • simply supported beam.
  • Adjustable legs for balancing the unit.
  • In order to carry out some of the practices with MFV unit, 2 set of weights “C type” are required.
