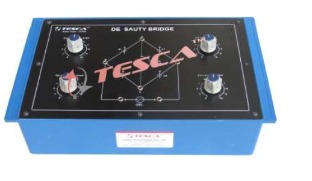

De-Sauty Bridge Setup
Order Code: 24258134.2
Category: General Lab Equipment V
This bridge is used to measure the unknown value of capacitance. The instrument has following in built parts fitted in ABS Plastic case. AC Source: The Bridge consist of sine wave signal of 1KHZ. The Amplitude of AC switch indicating lamp is...
SPECIFICATION
- This bridge is used to measure the unknown value of capacitance.
- The instrument has following in built parts fitted in ABS Plastic case.
- AC Source: The Bridge consist of sine wave signal of 1KHZ.
- The Amplitude of AC switch indicating lamp is provided on the Bakelite board.
- Two sockets are provided for the output of AC signals. Detector: For detecting small AC signals in the output, Null Detector is in-built with digital display.
- Circuit Diagram: The circuit layout on the board is quite spread out to facilitate convenient working & clear understanding.
- 4mm socket are provided for making connection.
Features:
- R2 -- Three decade resistance dials having value 10X1000, 10X100 and 10X10 ohms
- R1 --- Single decade resistance dial having value 10X 100 ohms
- C1 ---- Unknown capacitor.
- C2 ----- Two fixed standard capacitors having value 0.01mf & 0.1mf (loss free)
- Terminals are provided for external connections to connect unknown Capacitor.
