De-Morgans Theorem Trainer

Order Code: 38710

Category: Digital Electronics Trainers

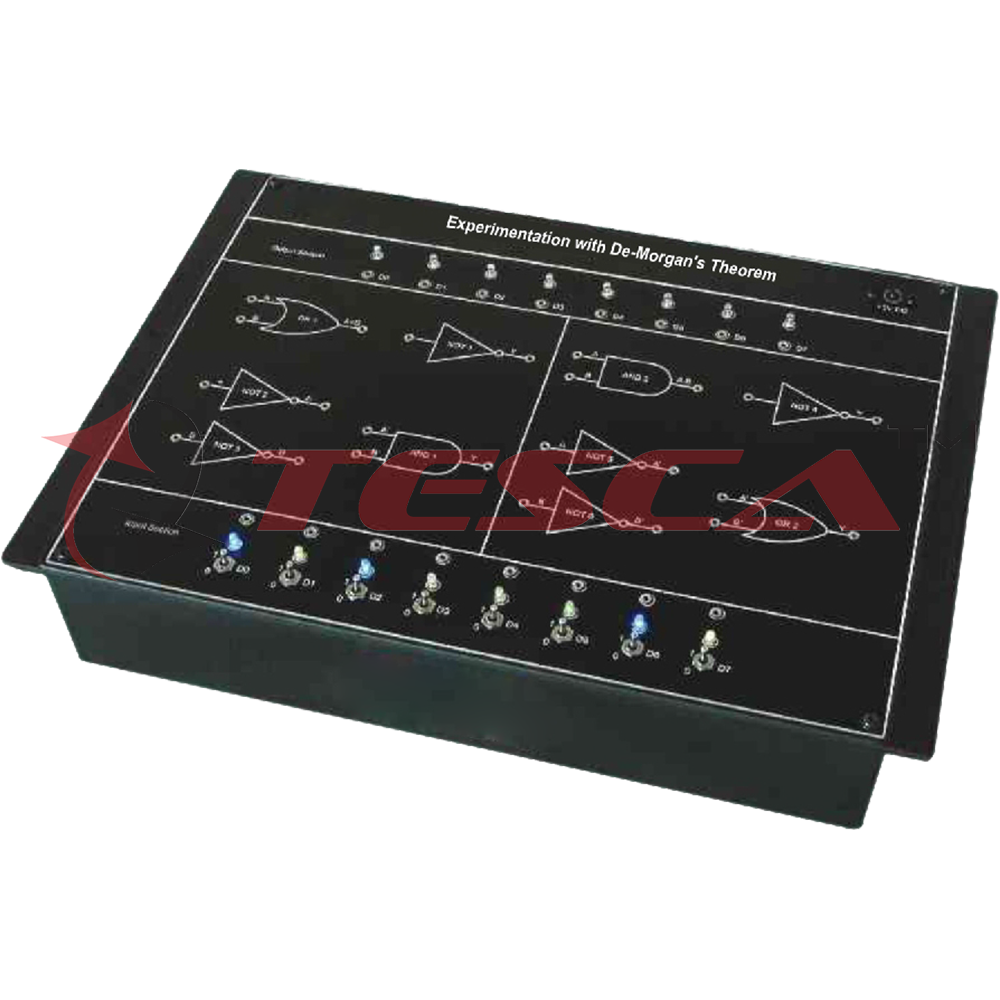

38710 Experimentation with De-Morgan’s Theorem is an elite training system for the digital laboratories. It is useful in understanding the basic concept of De-Morgan’s Theorem. This trainer describes both the De-Morgan’s Theorem sta...



SPECIFICATION

38710 Experimentation with De-Morgan’s Theorem is an elite training system for the digital laboratories. It is useful in understanding the basic concept of De-Morgan’s Theorem. This trainer describes both the De-Morgan’s Theorem statements in two separate sections so it is very easy for students to understand both the statements separately. The training system is designed in such a way that for performing any experiment students have to connect the links by patch cords, so it is very helpful for students to learn step by step implementation of De-Morgan’s Theorems.

Attractive input and output sections are provided on trainer in such a manner so that multiple experiments can be performed simultaneously.

Features

  1. Exclusive and compact design
  2. Easy explanation of both the De-Morgan’s theorem statements
  3. +5V SMPS Adaptor provided with the trainer for power supply
  4. Designed by considering all the safety standards
  5. Provided with an extensive manual
  6. A low cost training system

Object

  1. Verifying (A+B)’ = A’. B’
  2. Verifying (A.B)’ = A’+B’

Technical Specifications

Input : +5V DC

Logic levels

+5V : HIGH(Logic 1)

0V : LOW (Logic 0)

Dimensions (mm) : W 240 x D 345 x H 110

Weight : 1kg (approximate)
