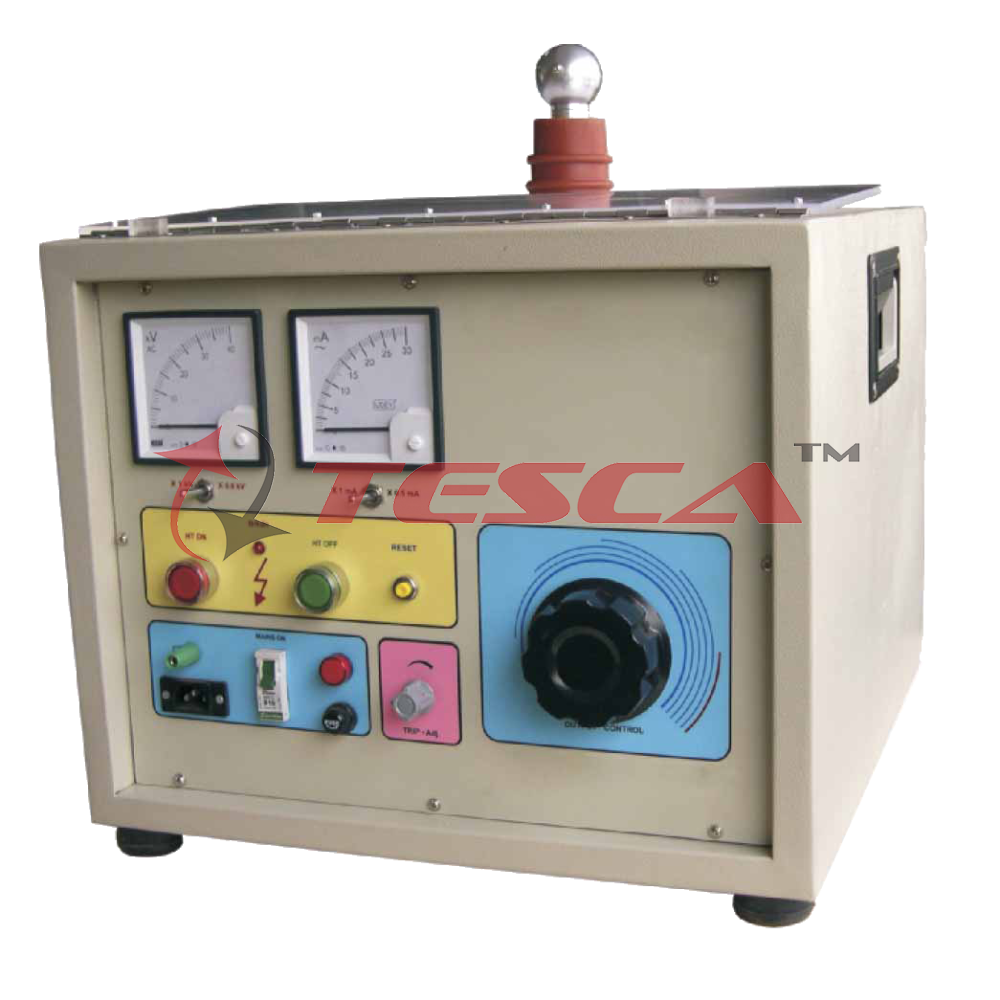

DC & AC High Voltage Test Set - 50kV-6mA DC/35kV-12mA AC
Order Code: 19549
Category: Oil Insulation Testers
Features Panel mounted controls & indicators with easy to read legend. Continuously variable output from zero to full voltage. Low end ground test. Multi range analogue kV meter and current meter. Fast acting overload circuit breake...
SPECIFICATION
Features
- Panel mounted controls & indicators with easy to read legend.
- Continuously variable output from zero to full voltage.
- Low end ground test.
- Multi range analogue kV meter and current meter.
- Fast acting overload circuit breaker.
- Zero start interlock
|
Technical Specification |
|
|
INPUT |
220 Volts ± 10 %, 50/60 HZ AC single phase. |
|
RATING |
100 % – 10 minutes and 50 % – continuous. |
|
METERING
|
Analogue, linear scaled moving coil meters of 96 mm square. kV meter : Two ranges MA meter : Two ranges Accuracy of measurement : ± 4 % of full scale. |
|
TRIP |
20% to 100% of rating adjustable. |
|
OUTPUT CONTROL |
One knob manual control. |
|
COOLING |
Air cooled epoxy resin cast up to 50 kV and oil cooled for 75 kV and above. |
|
CONSTRUCTION
|
Sheet steel cabinets powder coated. Up to 30 kV : Single unit witd lifting handles and rubber legs. 50 kV and above : Two unit on wheels. |
|
OUTPUT-DC(peak Value) |
0-5kV / 10mA |
|
OUTPUT-AC(50 Hz) |
0-5kV / 10mA |
