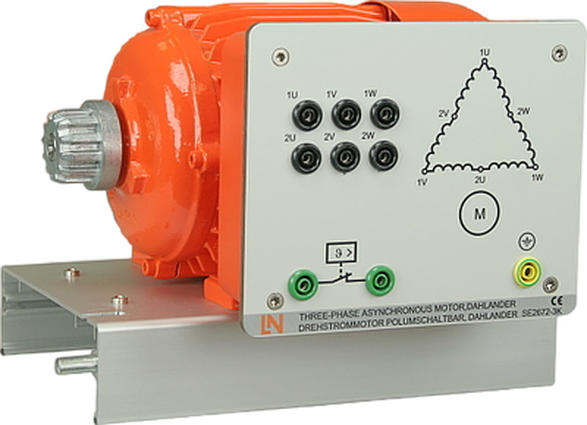

Dahlender Motor

Order Code: 23246308.4

Category: General Lab Equipment II

Two-Speed Constant-Power Motor Ratings: Output Power 175 W Stator Voltage (Three-Phase) :415 V – 50 Hz Full-Load Speed :2600/1415 rpm Full-Load Current 0.47/0.64 A Two-Speed Variable-Torque Motor Ratings: Output Power 175/44 W Stator Voltage...



SPECIFICATION

  • Two-Speed Constant-Power Motor Ratings: Output Power 175 W Stator Voltage (Three-Phase) :415 V – 50 Hz Full-Load Speed :2600/1415 rpm Full-Load Current 0.47/0.64 A Two-Speed Variable-Torque Motor Ratings: Output Power 175/44 W Stator Voltage (Three-Phase 415 V – 50 Hz Full-Load Speed 2710/1415 rpm Full-Load Current 0.48/0.16 A Two-Speed Constant-Torque Motor Ratings Output Power 175 W Stator Voltage (Three-Phase) 415 V – 50 Hz Full-Load Speed 2710/1400 r/min. Full-Load Current 0.48/0.42 A Physical Characteristics: Dimensions (H x W x D) 175 x 335 x 165 mm (6.9 x 13.2 x 6.5 in) Net Weight 8.2 kg (18 lb).
