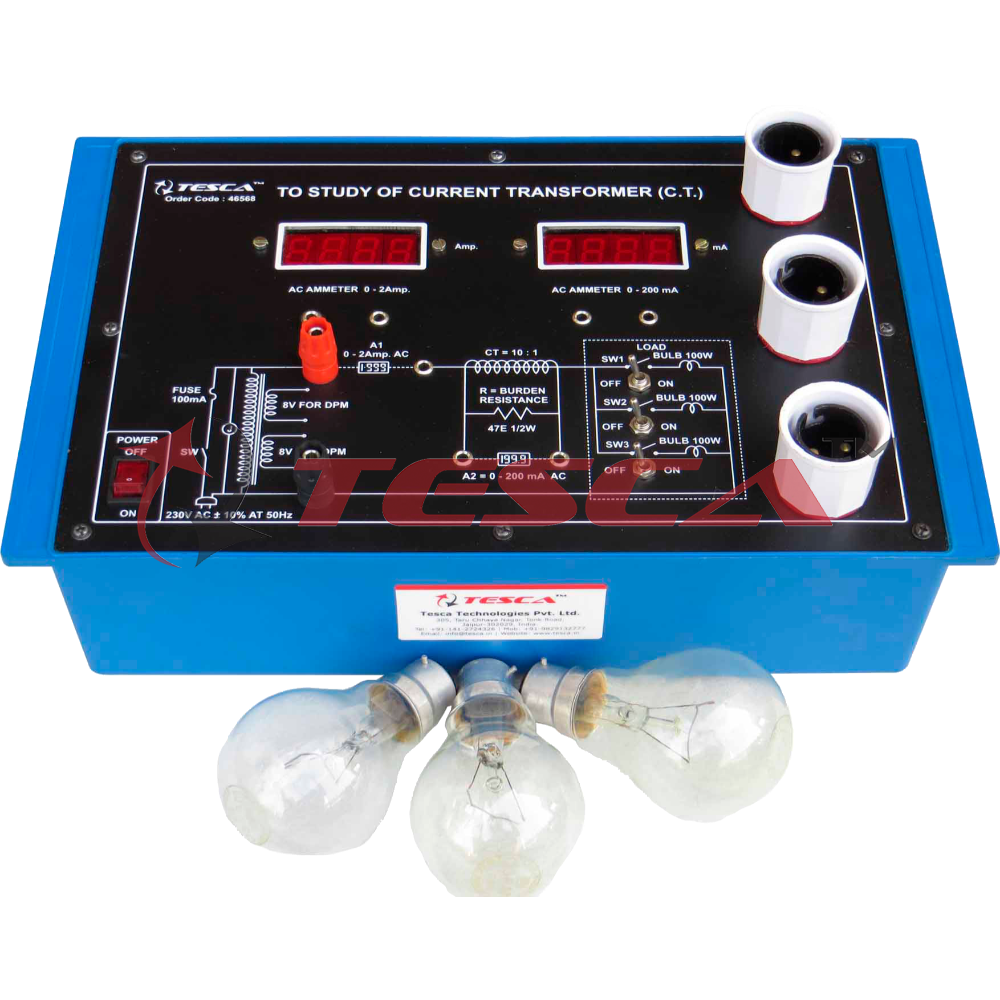

Current Transformer(C.T)
Order Code: 22236082.7
Category: General Lab Equipment I
Power Electronic Training Board has been designed specifically to study Current Transformer ( C.T. ). Practical experience on this board carries great educative value for Science and Engineering Students. Object: To study Current Transforme...
SPECIFICATION
Power Electronic Training Board has been designed specifically to study Current Transformer ( C.T. ).
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
- To study Current Transformer.( C.T. )
Feature:
The board consists of the following built-in parts:
- Current Transformer INPUT current is 2 Amp & OUTPUT current 200 mA i.e. Ratio 10 : 1.
- Digital AC Ammeter 31/2 digits seven segment display having range 0-2A.
- Digital AC Ammeter 31/2 digits seven segment display having range 0-200mA.
- Three 100 W Bulbs have been provided for load. Controlled by three different switches.
- Adequate no. of other electronic components.
- Mains ON/OFF Switch and Fuse 1.5 amp.
- The unit is operative on 230 V at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable 4mm spring loaded plug length 1/2 metre.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design Procedures, Report Suggestions and Book References.
