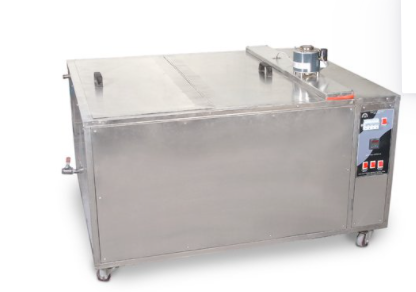

Curing Baths

Order Code: 21224953.2.76

Category: General Lab Equipment II

Accelerated Curing Tank having capacity to accommodate various sizes of concrete cube moulds or Cement mortar Cube Moulds, with a facility for accelerated curing by boiling water method up to temperature range : 100 ± 2 °C as per IS standard IS : 901



SPECIFICATION

Specifications:-

Accelerated Curing Tank having capacity to accommodate various sizes of concrete cube moulds or Cement mortar Cube Moulds, with a facility for accelerated curing by boiling water method up to temperature range : 100 ± 2 °C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 ± 2 °C.

Details:

  • Tank will consist of a rectangular double walled metal cabinet, inner and outer chamber made of thick gauge stainless steel .

  • Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes ny normal skilled person.

  • It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water.

  • Inside the chamber there will be a heavy gauge stainless steel perforated platform with ribs to withstand the heavy load of the cubes.

  • It will also have a lid with lifting handle to cover the chamber.

  • The front panel will have power supply indicating lamp and one main switch suitable for operation on 220 V, 50 Hz single phase, AC supply.

  • It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel.
