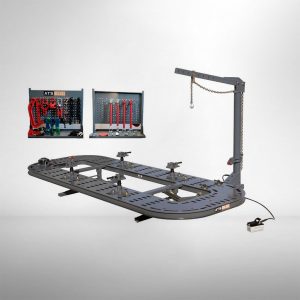

Crash Repair System
Order Code: CD006
Category: Collision Repair System
Features Virtually unlimited holding and positioning options. True 360-degree pulling capability of pulling tower. Unique tower design that allows ganging around the deck – even at the corners. Vertical Pulling tower with telescopin...
SPECIFICATION
Features
- Virtually unlimited holding and positioning options.
- True 360-degree pulling capability of pulling tower.
- Unique tower design that allows ganging around the deck – even at the corners.
- Vertical Pulling tower with telescoping heads provides unsurpassed 10 Ton power at the hook.
- The tilting platform and drive-on ramps makes loading/ unloading faster than ever before.
- Unique Single Bolt Sill Clamping allows mounting & demounting the car faster.
- Compatible to use Electronic Measuring System.
- Unique Design – Permanently attached plat form allows using welding & cutting equipments on bench while pulling.
Specifications
|
Specifications/ Features |
BRAVO 360 |
BRAVO 360 + |
|---|---|---|
|
Model |
4 Clamp System |
4 Clamp System |
|
Max Lifting Capacity |
3000 kg |
3000 kg |
|
Clear Lifting Height |
520 mm |
1100 mm |
|
Bench Dimensions (L x B x H) |
5500 x 2100 x 520 mm |
5500 x 2100 x 1100 mm |
|
Installation Dimensions (L x B) |
6500 x 3400 mm x 2670 mm |
6500 x 3400 mm x 2670 mm |
|
Pulling Operation Height |
520 mm |
520 mm |
|
Max Pulling Force |
10 Ton |
10 Ton |
|
Lifting Mechanism |
Hydro Pneumatic |
Hydro Pneumatic |
|
Compressed Air Requirement |
8 bar |
8 bar |
|
Vehicle Loading Time |
5-6 min |
5-6 min |
|
Pulling Tower Design |
Vertical Pulling Tower |
Vertical Pulling Tower |
|
Pulling Tower Rotation |
Sliding Type Tower |
Sliding Type Tower |
|
Pulling Tower Locking |
Not Applicable |
Not Applicable |
|
Adaptable with 2D/3D measuring Systems |
YES |
YES |
|
Roof Pulling |
Possible (Included) |
Possible (Included) |
|
Pulling & Safety Accessories |
Included |
Included |
|
Chassis Pulling CLAMPS |
Optional |
Optional |
