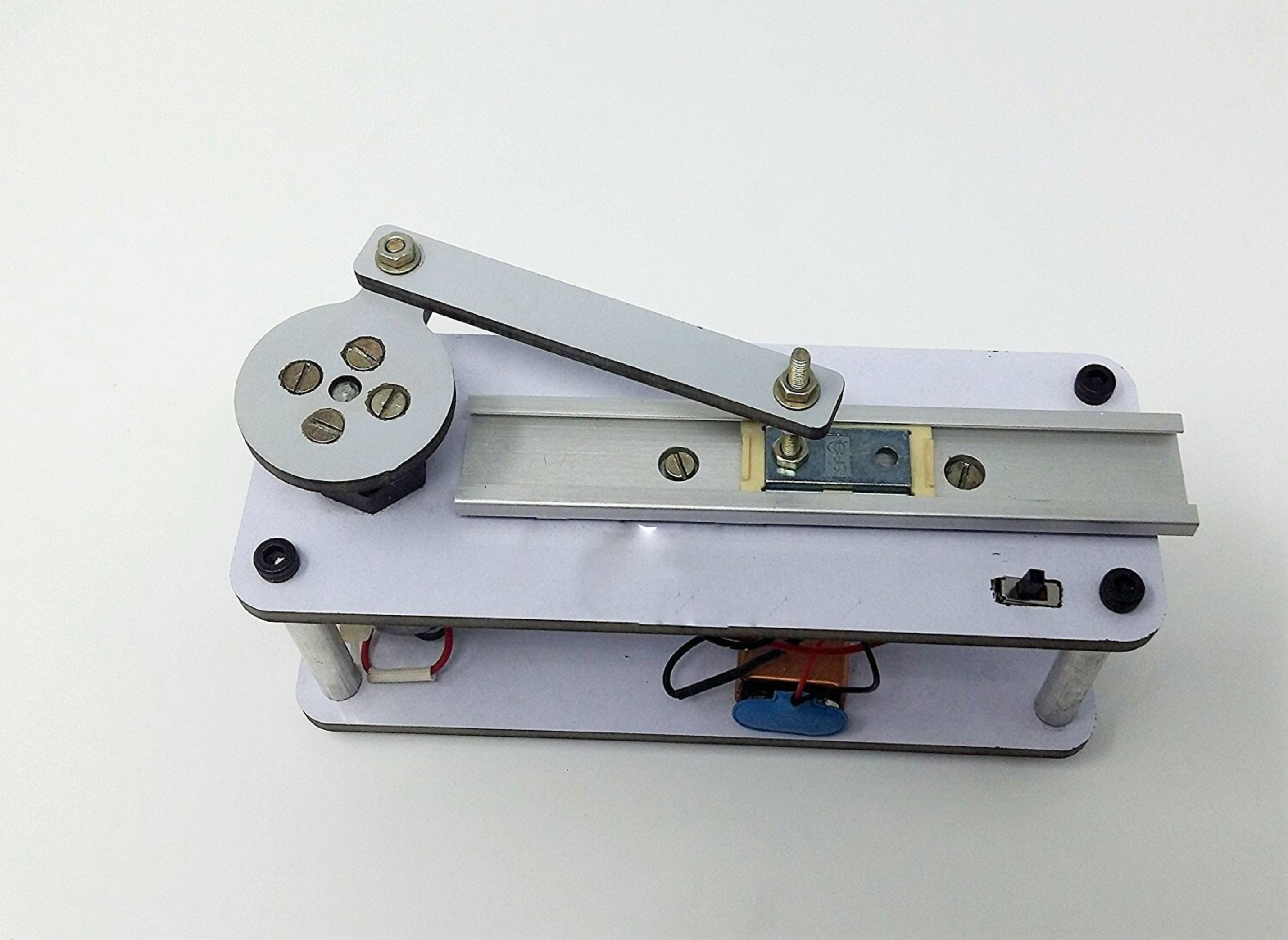

Crank mechanism kit

Order Code: 21224591.8.48

Category: General Lab Equipment IV

Oscillations of crank mechanisms. Kit to investigate crank mechanisms that are often found in compressors or pumps. Removable counter weights to study vibrations caused by oscillating masses. Adjustable stroke 50…100mm;



SPECIFICATION

  • Oscillations of crank mechanisms.
  • Kit to investigate crank mechanisms that are often found in compressors or pumps.
  • Removable counter weights to study vibrations caused by oscillating masses.
  • Adjustable stroke 50…100mm;
  • adjustable speed ;
  • adjusting screws at the crosshead allow the simulation of bearing clearance 4 exchangeable springs allow the simulation of fluid pressure forces. w x d x h:± 600x100x200mm;
  • english operation /instruction manual.
  • to be used together with the essential accessories: pos. 33.0 machinery fault trainer, pos. 33.2 belt drive kit , pos. 33.5 brake & load unit.
