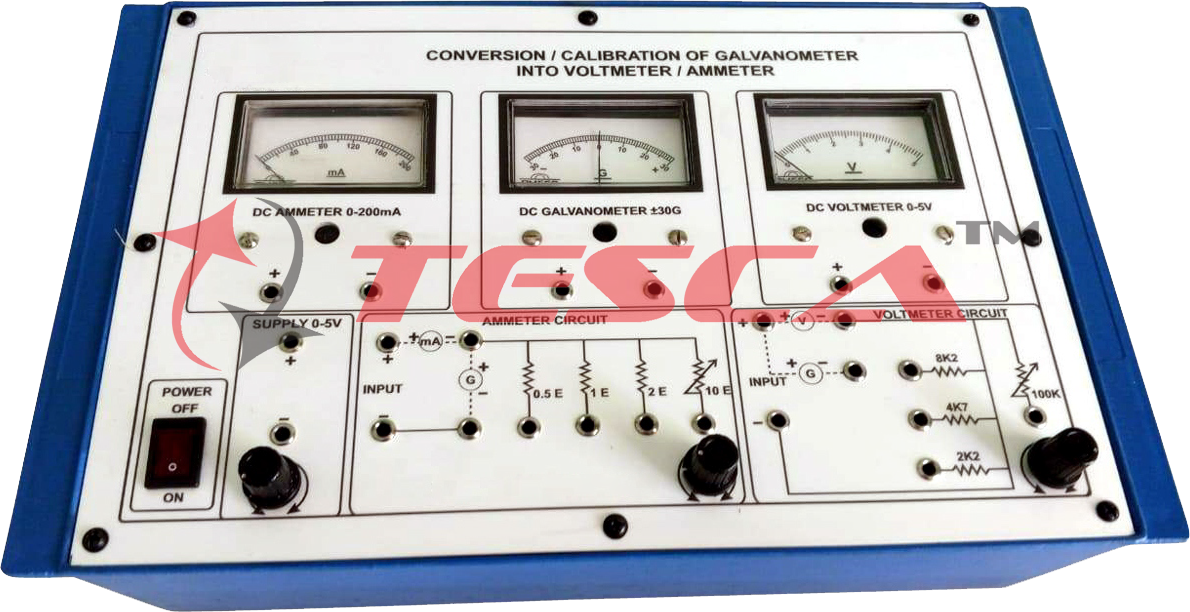

Conversion/Calibration of Galvanometer into Voltmeter/Ammeter
Order Code: 36403
Category: Analog Electronics Trainers
36403 To study of board has been designed specifically for conversion / calibration of galvanometer into voltmeter / ammeter The board is absolutely self contained and requires no other apparatus. Practical experience on this board carries great edu...
SPECIFICATION
36403 To study of board has been designed specifically for conversion / calibration of galvanometer into voltmeter / ammeter The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object
- To convert a galvanometer into an ammeter of a given range and to calibrate it.
- To convert a galvanometer into a voltmeter of a given range and to calibrate it.
Features
The board consists of the following built-in parts:
- 0-5V D.C. at 200mA, continuously variable regulated Power Supply
- DC Voltmeter, 65mm rectangular dial 0-5V
- DC Ammeter,65mm rectangular dial 0-200mA
- DC Galvanometer 65mm rectangular dial ±30G
- Adequate no. of other electronic components.
- Mains ON/OFF switch, Fuse and Jewel light.
- The unit is operative on 230V ±10% at 50Hz AC Mains.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
- Weight: 1.500 Kg. (Approx.)
- Dimension: W 340 x H 125 x D 210
List of Accessories
- Patch cords stackable 4mm length 50cm Red .................................04
- Patch cords stackable 4mm length 50cm Black ...............................03
