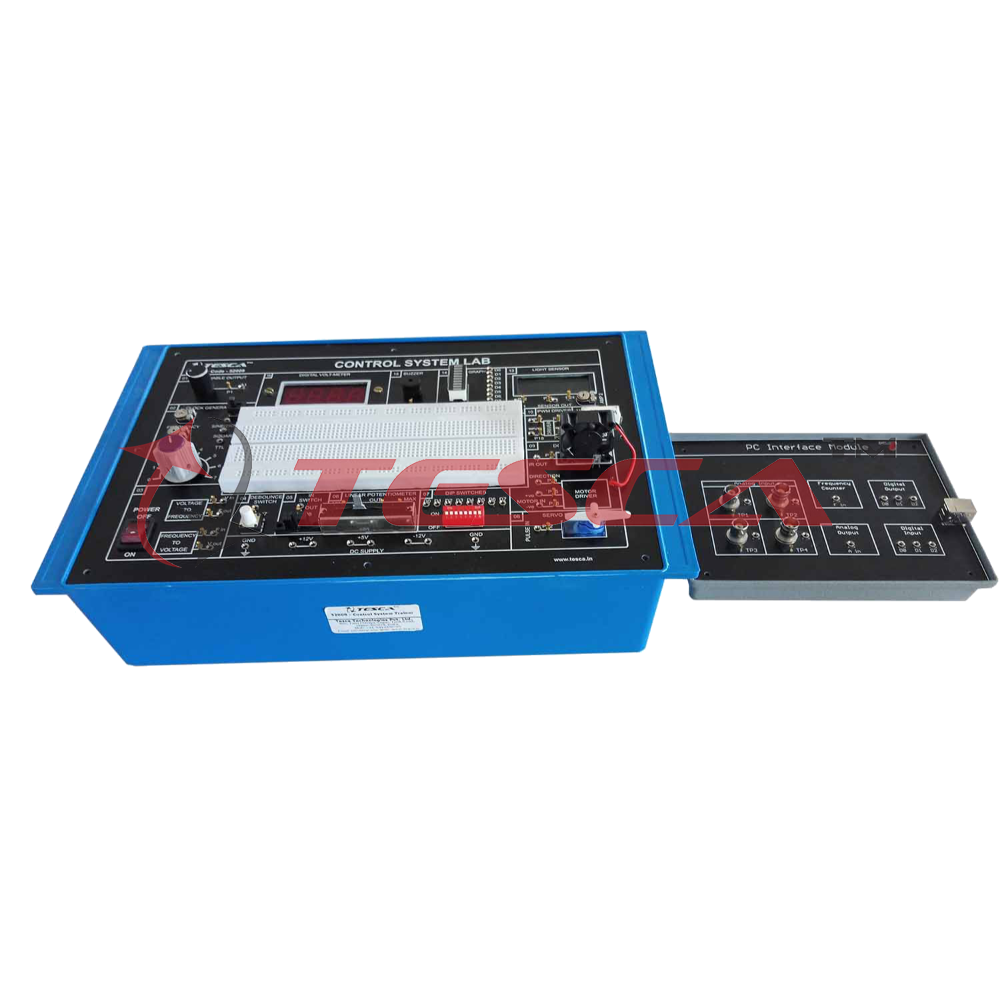

Control System Trainer

Order Code: 52008

Category: Instrumentation Trainers

  Control System Lab explores students & industry professional to the fundamentals of Control System. It demonstrates, how one device can be used to manage, command, direct or regulate the behavior of other system. Sequential Control...



SPECIFICATION


Control System Lab explores students & industry professional to the fundamentals of Control System. It demonstrates, how one device can be used to manage, command, direct or regulate the behavior of other system. Sequential Control, Linear Control is also well explained in the trainer. Control System Lab has sensors like Temperature sensor, Light sensor, DC motor, Filament lamps, IR sensor and many more which can be used for the study of Control system. There is a wide range of experiments which can be performed on the trainer. Application software for Interfacing with PC increases range of experiments.
  • Open loop Control system
  • Close loop Control system
  • Feedback concept
  • Servo motor control
  • DC motor control
  • Speed control
  • Light intensity control
  • Temperature Control
  • V/F & F/V conversion
  • LED bar display
  • Bread board for circuit design
  • User can design & develop own circuits
  • On board DC supply
  • PC interface for open loop & Close loop control
  • PC based Frequency counter
  • PC based DC voltmeter
  • Real time graphical representation
  • User friendly software
  • Exhaustive course material & references
