Consolidation test measurement
Order Code: 19203472.58
Category: General Lab Equipment III

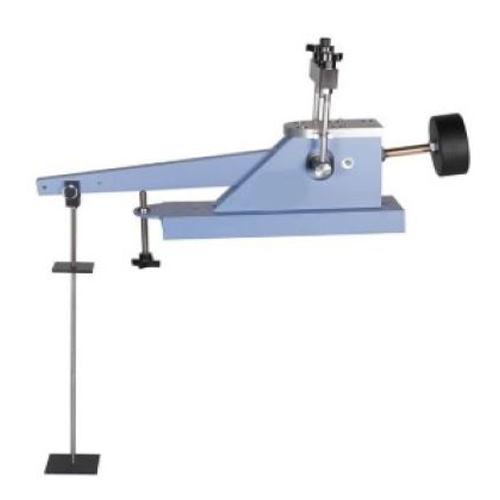

Oedometers , front loading;Overall dimensions: = 500x200x750 mm (height less hanger xwidthx length) mm;weight approx = 21 kg;Accessories: = Consolidation cells; Specimen Dia. x height [mm] : 50.47x20; Specimen area [cm2] :- 44.16;Cell dimension Dia. ...
SPECIFICATION
Oedometers , front loading;Overall dimensions: = 500x200x750 mm (height less hanger xwidthx length) mm;weight approx = 21 kg;Accessories: = Consolidation cells; Specimen Dia. x height [mm] : 50.47x20; Specimen area [cm2] :- 44.16;Cell dimension Dia. x height [mm] :- 139x74; Weight [kg] :-1.3; Axial displacement dial indicators/linear transducers:-Dial gauge, 10 mm travel x 0.002 mm divisions, anticlockwise rotation.Linear potentiometric transducer, 10 mm travel;Transducer extension cable, 6 m long;Transducer extension cable, 12 m long;Permeability attachment:-Permeability attachment with 50 ml graduated burette .Complete with clamps, stand and rubber;hose for connection to the cell. Weight 4 kg.;Consolidation bench:-Bench for up to three oedometers;Main Features = Compact and robust design, 3 lever arm ratio, Screw jack support, Same cell for standard and permeability test, Possible connection with Data acquisition and processing system; Max loading (using 11:1 beam ratio) = 1848 kg;
