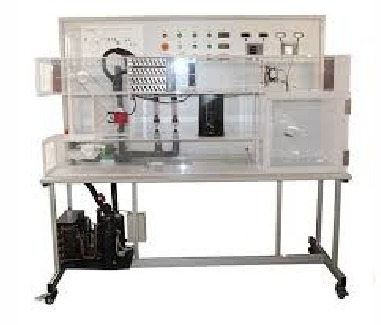

Computerized Air-Conditioning Trainer

Order Code: 24258373.10

Category: General Lab Equipment V

Technical Specifications : Material: Steel structure mounted on wheels, painted and treated in the oven for durability. Dimensions: Varies by model, e.g., 180 x 80 x 180 mm for one model and 1500 x 750 x 1650 mm for another. Weight: Approxi...



SPECIFICATION

Technical Specifications :

  • Material: Steel structure mounted on wheels, painted and treated in the oven for durability.
  • Dimensions: Varies by model, e.g., 180 x 80 x 180 mm for one model and 1500 x 750 x 1650 mm for another.
  • Weight: Approximately 235 kg for on. Power Supply
  • Voltage: Typically 230 Vac, 50 Hz single-phase.
  • Power Consumption: Ranges from 1500 VA to 4 kW depending on the model. Key Components Air Handling Unit
  • Air Circuit: Includes inlet, return, and bypass ducts, cooling and dehumidification battery, steam humidification battery, and heating battery.
  • Fan: Axial fan for airflow management.
  • Control Systems: Features for proportional control, ON/OFF step control, and dampers for emperature control. Refrigeration Circuit
  • Components: Hermetic compressor, forced-air condenser, thermostatic expansion valve, and water evaporator.
  • Instrumentation: High and low pressure gauges, thermometers, hygrometers, and digital multimeters for data acquisition Water Circuit
  • Components: Centrifugal pump, on-off valves, and a flow switch. Data Acquisition
  • Interface: PC control program with USB communication for real-time data monitoring.
