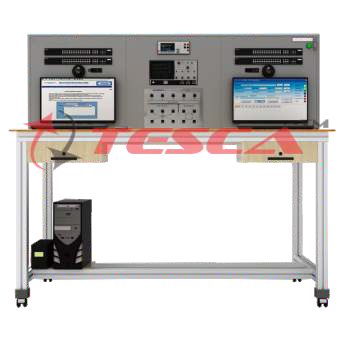

Computer Networks and Internet Security Training System consisting of : Modular WorkBench Servers & Workstation

Order Code: 40555C

Category: Communication Trainers

Features Modular Workbench Compute Server for DHCP, FTP and DNS Router & Layer 2 Switch Wireless Access Point Computer  Hardware  Training  with  Fault ?ndings LAN Training System with Protocol Analyser and...



SPECIFICATION

Features

  • Modular Workbench
  • Compute Server for DHCP, FTP and DNS
  • Router & Layer 2 Switch
  • Wireless Access Point
  • Computer  Hardware  Training  with  Fault ?ndings
  • LAN Training System with Protocol Analyser and Simulation Software
  • Network  and  Internet  Security  Training Software
  • LAN Tool Kit
  • STAR, BUS and RING Topology
  • Network Protection and Troubleshooting
  • CLI  and  Web  Managed  Con?guration  of  a Switch & Router
  • Con?guring a WAP and Wireless LAN
  • VLAN Set-up
  • Protocols selection
    • Stop and Wait
    • Go back to n
    • Selective repeat
    • Sliding window
    • Token Ring
    • Token Bus s CSMA / CD s  CSMA / CA
  • Simulated operation of hacking and tracking activities
    • Hacking via HTTP
    • Hacking via FTP
    • Hacking via phishing
    • Hacking via spywares
    • Hacking via virus
    • Hacking via software
  • Exhaustive Experimental Manual



Curriculam
The  Objective  of  the  System  is  to  teach  the following Curriculum:



Data Communication Components:

Fundamentals of a Desktop Computer with fault - ?ndings,  Initialisation,  Con?guration  and  Data Transfer using Serial, USB and Ethernet Ports



Types of Networks:
Network Media-UPT Cables and wiring scheme, Topologies-Star, Bus & amp; amp; Ring Topology,



Server:
Client and Server Roles, Peer to Peer Network, Install and Con?gure Windows Server, Install and con?gure Active Directory, Implementing AD Services, Con?guring a Server as a Web and FTP Server, Mail Box, DHCP and DNS Services



Network Devices:
Command line Interface & amp; amp; Web Managed Con?guration of Switch, Con?guring a WAP & amp; amp; Wireless LAN, Out of band and In band Management.



Network Switching and Routing:
Study of OSI Layer (Physical, Data Link, Network & Transport Layer), Address Routing Protocol (ARP), IP Addressing technique (IP4/1P6) and Subnetting, Installation and Con?guration of TCP/IP Protocol Utilities: PING, IPCONFIG, HOSTNAME,  ROUTE,  TRACERT  etc.  Packet Switching, Setup and con?gure a Virtual LAN , Spanning Tree Protocol, Command Line Interface and IP Routing, Network Protocols, Network Simulation Tools.



Protocols:

  • Stop and Wait
  • Go back to n
  • Selective repeat
  • Sliding window
  • Token Ring
  • Token Bus
  • CSMA / CD
  • CSMA / CA, Real Time Protocol Analysis - TCP/IP & UDP



Network and Internet Security:
Network Security, Wireless Security Measures, Cyber Security, Cryptography, Simulate Hacking and Tracking via HTTP, FTP, Phishing, Spywares, Virus, Software



System Specification
a) Workbench:

  • The Training System and Network Devices are aesthetically embedded on the Network Rack and Workbench.
  • It has a power indicator & ON/OFF Control and Circuit Breaker of rating 3Amp with ON/OFF Control and along with over load protection. Access door provided for equipment removal and maintenance.
  • The Workbench is supplied with a 1 KVA UPS/Inverter to cater for all equipment on board the workbench.



(b)    Computer Server - 1 No

  • Server provides is designed to run on-premises and hybrid cloud solutions, delivering enterprise- class performance, security, reliability, and expandability
  • Processor : Intel® Xeon® E-2224 (4-Core, 3.4 GHz, 71 W)
  • Number of Processors : One
  • Memory: 8 GB UDIMM DDR4 (1x 8 GB) or better  Network Controller Embedded : 1Gb 2-Port 361 I Ethernet Adapter
  • Storage Controller Embedded : S100i SW RAID with 4 SATA ports
  • Internal Storage : 4 LFF HDD Bays - 1TB SATA
  • PCI-Express Slots: 1 PCIe 3.0 slots Power Supply (1) External Power Supply Industry Standard Compliance:
    • Advanced Encryption Standard (AES),
    • Active Directory v1.0
  • Windows Server 2019 Essential -Single User License Monitor, Keyboard, Mouse supplied with the Server.



c)    Client Workstation - 3 Nos ( OPTIONAL )



d ) COMPUTER  HARDWARE  TRAINING SYSTEM -1 No.

  • Processor Type Core i3 Processor
  • Mother board With Intel Chipset
  • Memory (RAM) 4GB
  • Display adaptor card Built in mother board
  • Hard disk Above 500 GB (SATA)
  • Monitor 15"TFT colour SVGA
  • SMPS 450 watts
  • Drive DVD R/W drive (SATA)
  • Sound card Built in mother board
  • Accessories:  Keyboard,  Mouse,  Speakers & Microphone, Fault panel: 9 switch faults in the following section with Toggle switch, Serial port/USB,VGA, SATA1 - for DVD, SATA2 - Hard Disk, Audio, SMPS tester section



e)    Router - 1 No

  •  Aggregate Throughput : 35 Mbps or better
  • Total onboard WAN or LAN 10/100/1000 ports : 2 Nos RJ-45-based ports : 2 Nos
  • Default memory double-data-rate 3 (DDR3) error -correction-code (ECC) DRAM : 4 GB
  • Default ?ash memory 8 GB
  • Serial console port - RJ45 (up to 115.2 kbps): 1 Ÿ  Protocols: IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2),  Open  Shortest Path  First  (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Border Gateway Protocol (BGP), BGP Router  Re?ector,  Intermediate  System-to Intermediate  System  (IS-IS), Multicast Internet Group
  • Management Protocol Version 3 (IGMPv3), Protocol Independent
  • Multicast sparse mode (PIM SM), PIM Source- S p e c i ? c M u l t i c a s t ( S S M ) , R e s o u r c e Reservation Protocol (RSVP) etc



f)    Managed Layer 2 SWITCH - 1 No Processor and Memory:

  • Processor : 800 MHz, 512 MB SDRAM, 256 MB ?ash; packet bu?er: 1.5 MB
  • IEEE 802.1Q VLAN support
  • Support for up to 256 VLANs with a VLAN ID range of 2-4093 IEEE 802.1 X access control
  • Authentication of network users on a per port basis prior to permitting network access.
  • Port authentication includes assigned VLAN, Spanning Tree Protocol (STP)
  • Supports standard IEEE 802.1 D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1 s Multiple Spanning Tree Protocol (MSTP on local web).
  • IGMP snooping vl /v2
  • Improves network performance through multicast ?ltering, instead of ?ooding tra?c on all ports.
  • Address Resolution Protocol (ARP)
  • The ARP table displays all of the IP addresses that have been resolved to MAC addresses, either dynamically or through static entry con?guration..



g)    Wireless Access Point - 1 No

  • 5GHz 802.11ac and 2.4 GHz 802.11n 300 Mbps max rate) radios, dual-band antennas, 10 / 100 / 1000 BASE-T Ethernet network interfaces (RJ-45)- 4 LAN port and 1 WAN Port



h)    Trainer Boards consisting of LAN Training System - 1 No

  • ?    Hardware Topology
    • Star
    • Bus
    • Ring
    • Nodes    : 4 Nodes
    • Data Rate   : 10/100 Mbps
    • Interconnection : RJ45 connection cable to connect hardware to computer LAN card
  • Software Topology selection
    1. Star
    2. Bus
    3. Ring
  • Protocols selection
    1. Stop and Wait
    2. Go back to n
    3. Selective repeat
    4. Sliding window
    5. Token Ring
    6. Token Bus
    7. CSMA / CD
    8. CSMA / CA
    9. Packet Size :  128,  256,  512,  1024,  2048, 4096, 8192, 16384
    10. Inter packet delay : 1000, 2000, 3000, 4000, 5000ms Error generation : B a d p a c ke t , acknowledgment lost and auto error generation Encryption and decryption of data
  • Network details: Indication of computer name, IP address, Port number, status of network, MAC address and operating system on computer.
  • Graphical representation : Graphic representation of Data on software screen with di?erentiation of packet to be transmitted, packet being transmitted, packet transmitted with acknowledgment, packet with acknowledgment lost error, packet with bad packet error and packet which is discarded or resend.
  • Measurement and plotting: Error rate calculation, Throughput calculation
  • Protocol analysis: Indication of packet serial number, ?le name, ?le size, ?le number, receiver name, workgroup, receiver IP address, current packet, total packets, packet length, delay, protocol, topology, receiver MAC address, port number, packet send time, acknowledgment receive time, inter packet delay, data rate (Mbps), number of resend packets, acknowledgment value
  • Network analysis: Indication of packet serial number, ?le name, ?le size, ?le number, receiver name, work group, receiver IP address, total packets, packet length, time out, protocol, topology, receiver MAC address, port number, ?le send start time, ?le sent completion time, transmission time, data rate (MBPS), error.



Data Communication Training System (PC-Embedded) -1 No ( Optional)

  • 128 X 64 Graphics LCD display. Ÿ Memory-Flash 2MX16 Parallel, Ÿ  DRAM 16M X 32 Parallel ,
  • Micro SD Card, Ethernet Port:10/100 Ethernet RMII Interface, Interface Port - USB.
  • On Board 12C, SPI and CAN Bus.
  • Facility for programming of Drivers for USB and Ethernet Port in Bare Metal level.



Real  Time  Network  Protocol  Analyser Software - 1 User

  • The Protocol Analyser Software should be able to Capture live packet data from a network interface.
  • Facility to Open ?les containing packet data captured with many other packet capture programs.
  • Facility to Import packets from text ?les containing hex dumps of packet data.
  • Facility to Display packets with very detailed protocol information.
  • Facility to Save packet data captured.
  • Facility to Export some or all packets in a number of capture ?le formats.
  • Facility to Filter packets before and after capture of data using Capture Filter and Display Filter like Ethernet broadcast, No ARP,Ipv4 ,TCP only, UDP only, HTTP, non HTTP etc.
  • Facility to Create various statistics like Captured File Properties, Protocol Hierarchy, Packet Length, I/O Graphs etc.



LAN Tool Kit - 1 Set

  • LAN Cable Tester    : 2 Nos
  • RJ-45 Connectors    : 200 Nos
  • Crimping Tool    : 2 Nos,
  • Cat5e Cable : 100 mtrs.



Scope of Learning

Computer Hardware

  • To study di?erent parts of Computer Hardware
  • To introduce the switch faults in di?erent sections of computer Hardware and study its e?ect



Server

  • Computer Server with Windows Server Operating System
  • Install and Con?gure Windows Server
  • Install and con?gure Active Directory, Implementing AD Services
  • Con?guration of FTP Server
  • Con?guring a Server for DHCP
  • Installation and Con?guring DNS Resolution



Local Area Network and Protocols

  • Study of Ethernet LAN and Wireless LAN
  • Study of data encryption and decryption
  • Implementation and study of stop and wait protocol
  • Implementation and study of go back to n protocol
  • Implementation and study of selective repeat protocol
  • Study of token ring and token bus protocol
  • Study of sliding window protocol
  • Study of CSMA / CA protocol
  • Study of CSMA / CD protocol
  • Measure of throughput and the e?ect of bit errors on various protocols
  • Socket programming



Network Switching And Routing

  • Understanding and preparation of Ethernet cable.
  • To study of the OSI Reference Model.
  • Establishing a Console Session with Tera Term Topology.
  • Building a basic switch and end device con?guration.
  • Viewing Wired NIC Information.
  • Viewing Network Device MAC Addresses.
  • Building a Switch and Router Network Topology.
  • Calculating IPv4 Subnets.
  • Identifying IPv6 Addresses.
  • Designing and Implementing a Sub netted IPv4 Addressing.
  • Con?guring IPv6 Addresses on Network.
  • Con?guring Basic Switch Settings.
  • Con?guring Initial Router Settings.
  • Accessing Network Devices with SSH.
  • Implementing Inter-VLAN Routing.
  • Implementing VLANs and Trunking.
  • Con?guring Router-on-a-Stick Inter-VLAN Routing.



Wireless LAN

  • Viewing Wireless NIC Information.
  • Con?gure Firewall Setting.
  • Con?gure Wireless Router and Client.
  • Con?gure DHCP on a Wireless Router.
  • Con?gure Mobile Device for Wi-Fi Connectivity.



Internet Security Simulation techniques

  • HTTP technique
    • Brute force algorithm
    • View/add/edit/update contents
    • Login history
  • FTP technique
    • Brute force algorithm
    • Upload/download ?les
  • Phishing technique
    • Compose mail/inbox
  • Spyware technique
    • Brute force algorithm
  • Upload/download spyware
  • Virus technique
  • Upload/download e-mail virus
