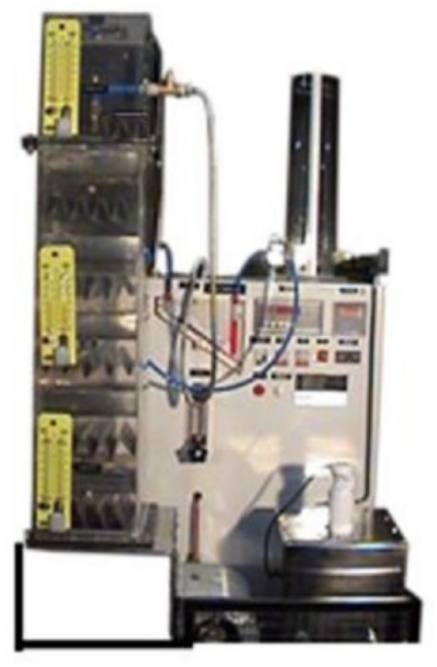

Computer Controlled Bench Top Cooling Tower

Order Code: 20214160PYAY.16

Category: General Lab Equipment III

Computer Controlled Bench Top Cooling Tower Unit: Benchtop unit. Anodized aluminium structure and panels in painted steel. Main metallic elements in stainless steel. Water propeller pump, computer-controlled, maximum flow of water: 120 l./h. 3 Air...



SPECIFICATION

Computer Controlled Bench Top Cooling Tower

Unit: Benchtop unit. Anodized aluminium structure and panels in painted steel. Main metallic elements in stainless steel. Water propeller pump, computer-controlled, maximum flow of water: 120 l./h. 3 Air propeller with a fan with speed control from the computer (PC), (145 m /h max., 3000 rpm). The heating element, is computer-controlled. (60° C. max ). Water tank (14 I. capacity). Level switch in the tank. Flow sensor, range: 0.25- 6.5 I./min 2 Differential pressure sensors, range: 0 - 1" H O. 2Column type 9: Nn of levels: 8 N° of sheets by level: 10 Total surface: 1 013 m2 Height of packaging: 650mm. Density Area/volume: 58 m2 /m3.
