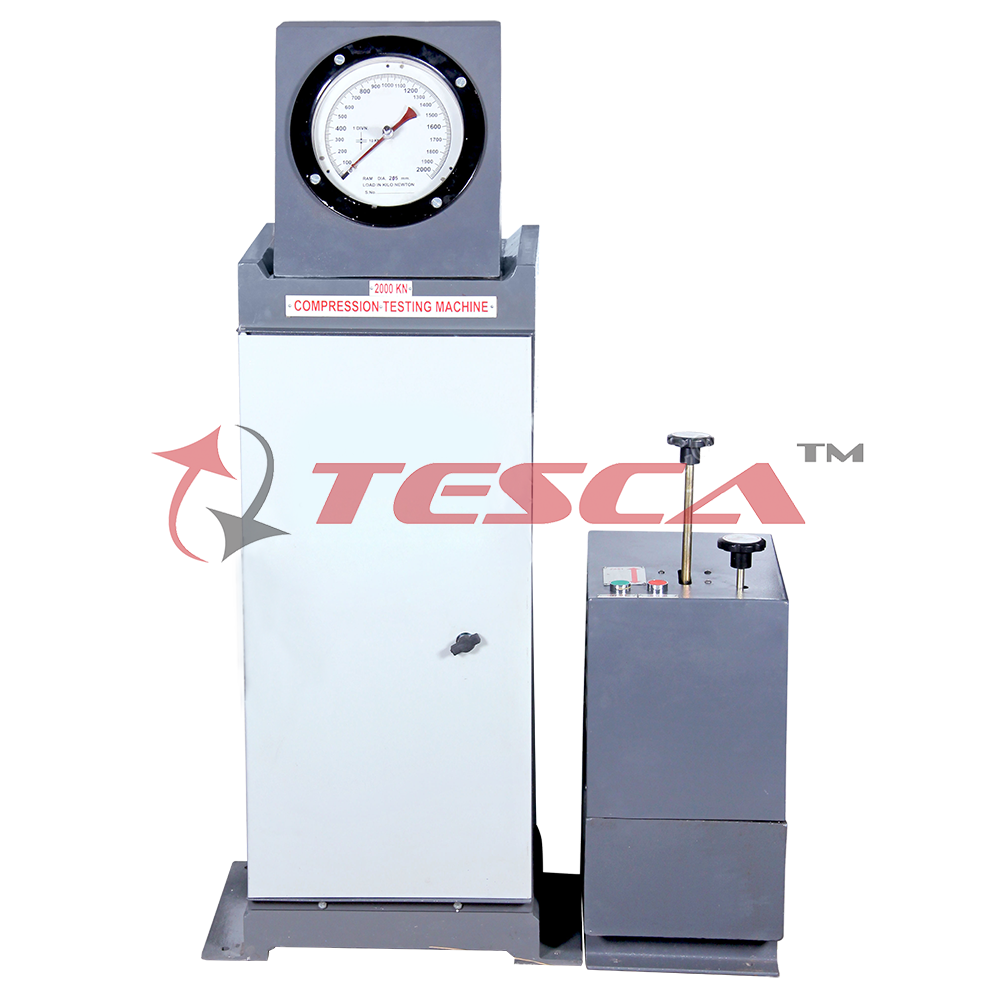

Compression Testing Machine Analog - Single Gauge - 1200 KN

Order Code: MT006

Category: Concrete Testing

Compliance with following international standards - IS 516, IS 14858. Detailed specification as follows: Salient Features: Aesthetically designed unit The electric pumping unit is fixed with a micro?switch to switch off the motor automatic...



SPECIFICATION

Compliance with following international standards - IS 516, IS 14858. Detailed specification as follows:

Salient Features:

  • Aesthetically designed unit
  • The electric pumping unit is fixed with a micro?switch to switch off the motor automatically as the load on the machine approaches the rated capacity.
  • The unit is equipped with a 8" dia pressure gauges with maximum red pointer.
  • Four column high stiffness and high stability fully welded construction of the loadframe.

Construction Details
The compression testing machine consists of separate pumping unit and loading unit. Detailed descriptions of both the devices are narrated below.

Loading Unit

  • The upper platen has got a self aligning action and is attached to a rigid cross head plate.
  • The lower platen rests on the jack ram and is positioned with the help of a centering pin.
  • Loading is accomplished by upward movement of lower platen.
  • A dust cover is provided on the jack to prevent any dust from going into the cylinder.
  • A spacer with a centering locating pin is provided to test small specimens.
  • The lower and upper platens of the machine are hardened ground and polished.

Pumping Unit

  • The pumping unit is a separate unit connected to the jack by means of a high pressure hose pipe.
  • A junction box is suitably fixed to connect the motor to the mains through a push button starter.
  • Calibrated against N.P.L. Tested Master Gauge or Proving Ring.
  • A max red pointer is provided to facilitate taking readings after failure of the specimen.
  • The pressure gauge is fixed at an Angle for easy readability.

Scope of supply

  • High strength rigid structure (Loading Frame)
  • Pumping unit (Oil source cabinet)
  • Pressure gauge
  • Pair of compression platens
  • High pressure hose pipe

Technical Specification

Capacity

1200 Kn

Platen size in mm

230 mm dia

Ram Dia in mm

165 mm

Ram Travel in mm

50 mm

Vertical daylight in mm

300 mm

Horizontal daylight in mm

300 mm

Weight approx in kg

625 kg

Platen hardness

More than 550 Vickers hardness

Electric Motor

1 HP, single Phase

Operation on

220 V AC single Phase.

Least count

0.5% of the full load

Pumping

Motorized

Pump Speed

Dual speed

Motor

Induction Motor

Reading

Analog

Accuracy

± 2%

Release valve operation

Required

Auto stop after failure of specimen

Not available, need to stop the machine manually

Auto Release of Pressure after specimen failure

Not Available, Need to release pressure manually after the completion of test

Calculation of result

Manual

Holding of Max.Load

Available

Pace Rate or Rate of Loading indication

Not Available

Operator skill to control Pace Rate

Not Applicable

Bar Graph

Not Available

Multi Channel operation

Not Available

Load indication and Control

Manual

Saving of records

Not Available

Pen drive slot

Not Applicable

Real time graph

Not Applicable

Printer interface (Direct connectivity to printer w/o computer)

Not Applicable

Computer operation software and data Acquisition software

Not Applicable

Displacement controlled operation

Not Available

Modulus of Elasticity Calculation

Not Available

Flexural attachment

Possible, all calculations will be made manually

Splitting Tensile Test

Possible but manual calculation required

LAN Connectivity

Not Available

Auto internal Calibration without

Not Available

proving ring



Piston over travel safety cut off

Not Available

Over load safety cut off

Available

Shot circuit protection

Available
