Complete Training System For 3 Phase Frequency Converters

Order Code: 22235521.2.35

Category: General Lab Equipment I

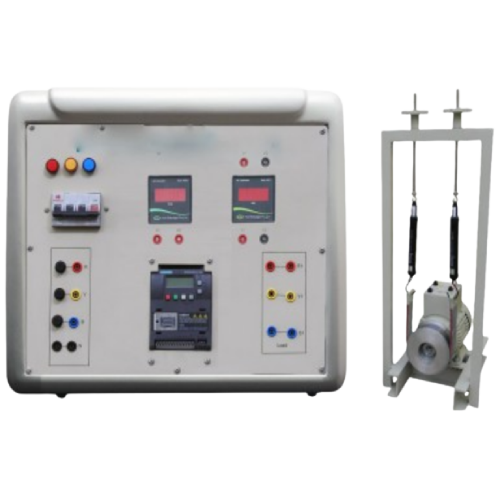

Complete training system for study of frequency converters using a didactical open frequency converter in panel frame. Topics: Rotating field and space vectors Modulation types: square, trapezoidal, sinusoidal, pulse width modulation (PWM)...



SPECIFICATION

Complete training system for study of frequency converters using a didactical open frequency converter in panel frame.

Topics:

  1. Rotating field and space vectors
  2. Modulation types: square, trapezoidal, sinusoidal, pulse width modulation (PWM)
  3. Voltage vector control VVC
  4. Magnetisation with a linear V/f characteristic
  5. Boosting of magnetisation by means of the start voltage
  6. Optimisation of load characteristics by means of IxR compensation
  7. Slip compensation
  8. Operation of the motor in a star configuration
  9. Computer-assisted measurement and evaluation using CBM 10 software
  10. Recording a load characteristic
  11. Comparison of multiple load characteristics
  12. Brake choppers
  13. Variable-speed drives


The system must come with full experimental guide, with many tasks to be executed both in printed version and with a virtual environment (software do manage manuals). Pdf files only will not be accepted, the software must contain teacher and student environments (with and without answers) and interactive specialized application to be used in the classes. It must be compatible with an additionally supplied online portal for the management of experiments and devices, with School license for any number of users to manage, structure and inventory a complete scientific or technical educational.
