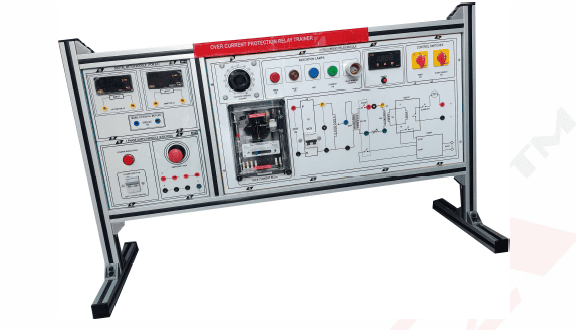

Combined Overcurrent Earth Fault Relay Trainer
Order Code: 24258364.2
Category: General Lab Equipment V
Product Overview The Combined Overcurrent and Earth Fault Relay Trainer is a specialized training tool designed for educational and laboratory use. It allows learners to explore the principles, wiring techniques, and operation of overcurrent and e...
SPECIFICATION
Product Overview
The Combined Overcurrent and Earth Fault Relay Trainer is a specialized training tool designed for educational and laboratory use. It allows learners to explore the principles, wiring techniques, and operation of overcurrent and earth fault protection systems. With built-in banana sockets for current injection and contact connections, this trainer supports hands-on learning in a safe and accessible format.
The unit is housed in a metalclad mounting bracket with a convenient handle, making it portable and ideal for classroom and lab environments.
Key Features
-
Designed for training in overcurrent and earth fault protection systems
-
Includes banana sockets for simplified and secure wiring connections
-
Supports 32A current injection and 10A contact connections
-
Housed in a durable metalclad enclosure with a handle for easy portability
-
Ideal for technical education, vocational training, and lab-based experiments
Technical Specifications
| Specification | Details |
|---|---|
| AC Supply Input | 230V AC |
| Contact Output | Included |
| Current Injection | 32A rated (via banana socket) |
| Contact Connection | 10A rated (via banana socket) |
| Mounting | Metalclad bracket with integrated handle |
Applications
-
Overcurrent and earth fault protection system training
-
Electrical laboratory experiments
-
Vocational and technical education programs
-
Hands-on learning environments focused on electrical protection systems
