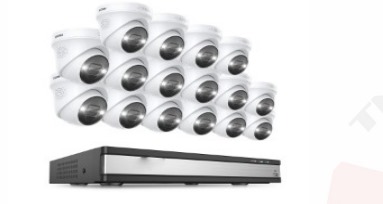

DVR: 01 Set
 Feature:

• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable: Up to 12/24-ch IP camera inputs (up to 6 MP)
• Max. 800 m for 1080p and 1200 m for 720p
• HDTVI signal transmission: Up to 10 TB capacity per HDD
• Compression and Recording: H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 4 MP lite resolution
• Storage and Playback: 2 SATA interfaces
• Smart search for efficient playback
• Support the third-party cloud storage (Dropbox/Google Drive/Microsoft One Drive)

Smart Function :

• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support 4-ch line crossing detection and intrusion detection; DS-7216HQHI-K2 supports 1-ch sudden scene change detection

Technical Specification:

• Video compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution : When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame rate: Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video bit rate: 32 Kbps to 6 Mbps
• Dual stream: Support
• Stream type: Video, Video & Audio
• Audio compression: G.711u
• Audio bit rate: 64 Kbps
• AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS input: PAL/NTSC
• CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• VGA output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output: 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback: 16-ch
• SATA: 2 SATA interfaces
• Capacity: Up to 10 TB capacity for each disk
• Serial interface: RS-485 (half-duplex)
• USB interface: Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
• Power supply: 12 VDC
• Consumption : ≤ 25 W
• Working temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working humidity : 10% to 90%
• Dimension: (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight: ≤ 2 kg (4.4 lb)

Camera: 10 Set

• Type: Bullet
• Resolution: 1080 P2048x1536 or better
• 30m IR Range
• 3MP CMOS Image Sensor

Display Unit:

• Technical Specification:
• Screen size: 813mm
• Aspect ratio: 16:9
• Resolution: 1366 x 768 or better
• Viewing angle: H 178? / V 178?
• Contrast: 4000:1 (Typical)
• Brightness: 250 cd/m2 or better
• Response time: max 20 m/s (Typical)
• Backlight type: DLED
• Dynamic backlight adjust: YES
• Comb Filter: 3D
• Noise Reduction: 3D
• De- Interlace: 3D
• Weak signal Enhancement: Yes
• HDMI IN (Version: 1.3 / 1.4): 2
• USB 2.0: 2
• AV input: 1
• AV output: 1
• RF IN: 1
• PC IN: 1
• Headphone out: 1
• Video system: PAL/ SECAM/ NTSC
• Sound system: BG/ D/ K/ I
• Receive Channel: 199
• Video: MPEG, AVI, MOV, MKV, DAT, MP4, VOB
• Audio: MP3/WMA/AC3/AAC
• Image: JPG, JPEG, BMP, PNG
• Audio output: 2 x 8W
• Speaker position: Bottom
• Sound Effect: Stereo
• Power supply: 100V - 240V
• Standby power consumption: < 0.5 W
• Maximum power consumption: 45 W
• Dimensions TV with Stand (L × W × H): Approx. 733mm × 179mm × 480mm

HDD:
Capacity: Min 4 TB
