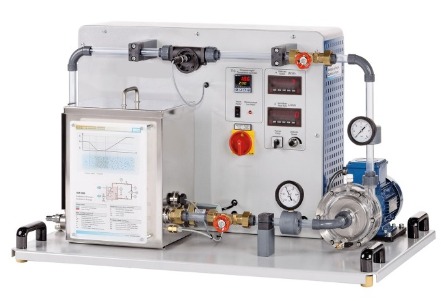

Cavitation Phenomenon Trainer
Order Code: 24258098.12
Category: General Lab Equipment V
CAVITATION PHENOMENON: Visualisation of cavitation effects in a transparent pump; how speed, inlet pressure, flow rate and temperature affect cavitation. Features,- visualisation of cavitation effects in a transparent pump,- continuously adjusta...
SPECIFICATION
CAVITATION PHENOMENON: Visualisation of cavitation effects in a transparent pump; how speed, inlet pressure, flow rate and temperature affect cavitation. Features,- visualisation of cavitation effects in a transparent pump,- continuously adjustable pump speed,- closed water circuit. Learning objectives/experiments,- formation of cavitation,- observation of cavitation effect,- how speed, inlet pressure, flow rate and temperature affect cavitation
Specification:
-
visualisation of cavitation in centrifugal pumps
-
transparent pump housing and pipe at the inlet side
-
open impeller to observe the blades during operation
-
continuously adjustable pump speed via frequency converter
-
temperature control via heater and external cooling via water supply
-
flow measurement using rotameter
-
display of the pressures at inlet and outlet side of the pump via manometers
-
digital display of speed, water temperature in the return and flow rate
-
closed water circuit with tank and temperature display.
Technical data:Centrifugal pump with drive motor,- power consumption: 0,37kW,- speed: 500...3300min-1,- max. flow rate: 60L/min,- max. head: 14m,Tank: 20L,Screw-in heater: 1,5kW.
Measuring ranges:,- pressure (inlet): -1...0bar , pressure (outlet): 0...1,5bar,- temperature: 0...100°C,- flow rate: 10...140L/min, 230V, 50Hz, 1 phase; 230V, 60Hz, 1 phase
