Calibration Trainer

Order Code: 52389

Category: Process Control Trainers

Calibration Trainer (52389) gives an idea regarding the procedure for operation & calibration of Actuators & Transducers. Electricals and pneumatic signals are used for the operation and calibration of these Actuators & Transducers. Preci...



SPECIFICATION

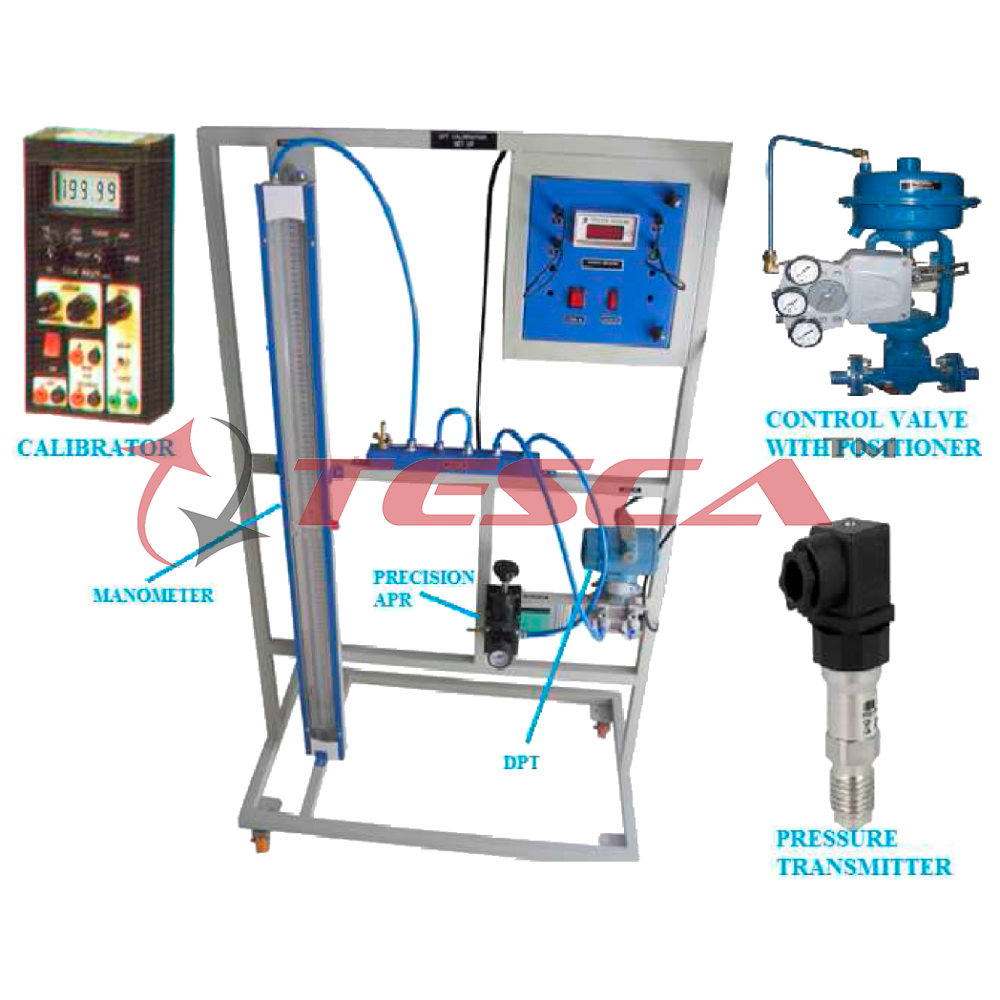

Calibration Trainer (52389) gives an idea regarding the procedure for operation & calibration of Actuators & Transducers. Electricals and pneumatic signals are used for the operation and calibration of these Actuators & Transducers. Precision Air Pressure Regulator (APR) with manometer are used to generate pneumatic signals. Voltage-Current source is used as auxiliary power source for instruments which requires electrical supply as a input. Various control loop components such as Control valve with positioner, Voltage-Current source, Calibrator, Controller, Transducers are used in the calibration trainer using supplied hoses and cables.

Features
  1. Compact Ergonomic Design.
  2. User Friendly, Self Explanatory Systems.
  3. Robust Construction.
  4. MS Powder coated movable vertical Frame.
  5. Training Manual for Operation Ease.
  6. Caster wheel mounted movable frame

Experiments
  1. To study the Calibration of Differential Pressure Transmitter
  2. To study the Calibration of Manometer
  3. To study the Calibration of Pressure Transmitter
  4. To study the Operation & inherent characteristics of Pneumatic Control Valve
  5. To study the Operation of Electro Pneumatic Positioner
  6. To study the Operation of Universal Calibrator
  7. To study the Operation of Controller
  8. To study the Operation of different signals: 1) Pneumatic Signal, 2) Electrical Signal.
  9. To study of inter connection of control loop components

System Accessories
  1. Differential Pressure Transmitter
  2. Controller
  3. Manometer
  4. Precision Regulator
  5. Process Indicator (mA indicator)
  6. Air supply distribution manifold
  7. Pressure Transmitter
  8. Calibrator
  9. Pneumatic Control Valve with Positioner
  10. Voltage-Current Source

Services Required
  1. Electric supply 230 V AC, 50 Hz.
  2. Suitable compressed air supply (0-4 Kg/cm2)
