Brinell Hardness Testing Machine

Order Code: 23246350.2.6

Category: General Lab Equipment II

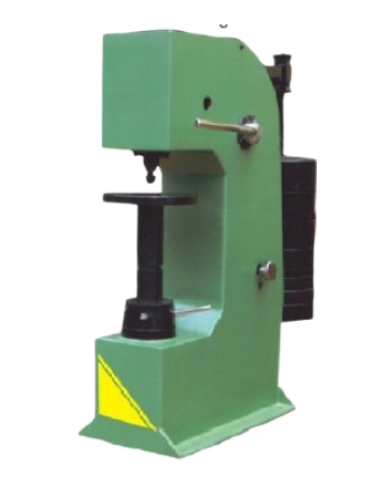

Simplest model of Brinell Hardness Tester with mechanical design. loading, unloading, manual, best suitable for testing batch quantities. Brinell hardness tester is precision engineered to IS:2281-1968, BS:240 and ASTM:E10 Most suitable for productio...



SPECIFICATION

Simplest model of Brinell Hardness Tester with mechanical design. loading, unloading, manual, best suitable for testing batch quantities. Brinell hardness tester is precision engineered to IS:2281-1968, BS:240 and ASTM:E10 Most suitable for production testing. These machines are designed to measure hardness of casting, forgings, other metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape
Technical Specifications:-
Loads : 500 to 3000 stages of 250 kg

  • Initial Load : Nil
  • Max test height : 254 mm
  • Depth of throat : 150 mm
  • Max. Depth of elevating screw below base: 0 mm
  • Size of Base : 255 x 495 mm
  • Machine Height : 860 mm
  • Net Weight : 210 kg.

Standard Accessories :

  • Testing table 200 mm (1Pc.)
  • Testing to ble V groove 70 mm (Nil)
  • Ball Holder 5 mm (1pc)
  • Ball Holder 10 mm (1pc)
  • Tost Block HB - 5/750 (Nil)
  • Tost Block HB - 10/3000 (1pc)
  • Brinell Microscope (1pc)
  • Allen Spanner (4pc.)
  • Instruction Manual.
