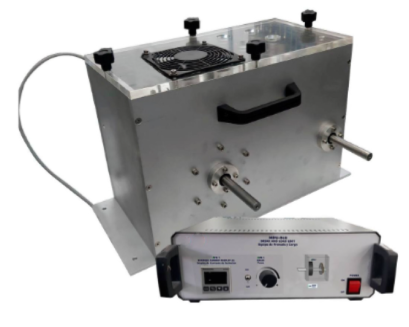

Brake & load unit

Order Code: 21224591.8.38.5

Category: General Lab Equipment IV

 As essential accessory to pos. 33.0 to generate a loading torque; consisting of Magnetic particle brake; control unit with exciter current display;



SPECIFICATION

  • As essential accessory to pos. 33.0 to generate a loading torque;
  • consisting of Magnetic particle brake;
  • control unit with exciter current display;
  • potentiometer to adjust braking torque;
  • integrated belt drive for second speed and torque range;
  • temperature protection and fan overheating protection Direct brake operation: speed range: 200...2000rpm, braking torque: 1...10nm;
  • operation via belt drive: speed range: 600...6000rpm, braking torque: 0.3...3.3nm,
  • nominal brake power: 450w/3000rpm,
  • w x d x h :± 475 x 415 x 195 mm (control unit);
  • w x d x h : ± 350 x 170 x 260 mm (brake);
  • english operation / instruction manualbrake & load unit as essential accessory to pos. 33.0 to generate a loading torque;
