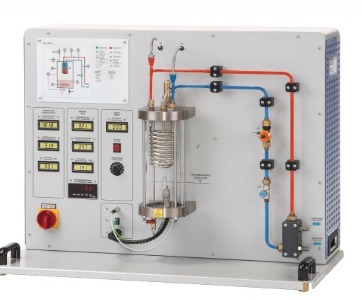

Boiling process training system
Order Code: 24258098.79
Category: General Lab Equipment V
Boiling process Visualisation of different forms of evaporation in a transparent pressure vessel Features • visualisation of boiling and evaporation Specification • visualisation of boiling and evaporation in a transparent pressure ves...
SPECIFICATION
Boiling process
Visualisation of different forms of evaporation in a transparent pressure vessel
Features
• visualisation of boiling and evaporation
Specification
• visualisation of boiling and evaporation in a transparent pressure vessel
• evaporation with heating element
• condensation with tube coil
• water supply via the lab network or via Water chiller to ensure a maximum water temperature of 16°C
• safety valve protects against overpressure in the system
• pressure switch for additional protection of the pressure vessel, adjustable
• sensors for pressure, flow rate and temperature with digital display
• software for data acquisition via USB under Windows 8.1, 10
• refrigerant R1233zd, GWP: 1
Technical data
Heater
• power: 315W, continuously adjustable
Safety valve: 4bar abs.
Pressure vessel: 2850mL
Condenser: coiled tube made of copper
Refrigerant
• R1233zd
• GWP: 1
• filling volume: 1,2kg
• CO2-equivalent: 0t
Measuring ranges
• pressure: 0...4bar abs. (tank)
• power: 0...300W (heater)
• flow rate: 0,05...1,8L/min (cooling water)
• temperature: 4x 0...100°C
230V, 50Hz, 1 phase
