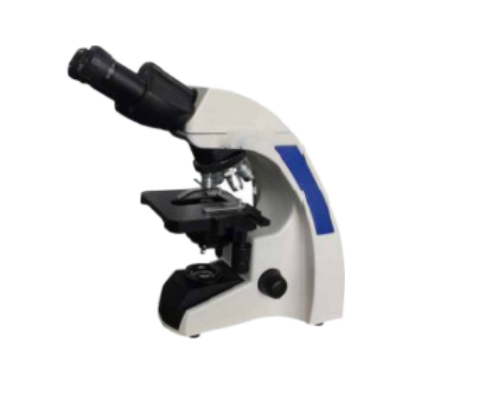

Biological Microscope

Order Code: 21225231.1

Category: General Lab Equipment I

Specifications: Optical system : finite optical system Viewing head : siedentopf binocular viewing head, Interpupillary distance range 48-75 mm, inclined at 30º Eyepiece : wide field eyepiece wf10x/f.n. 20 mm Nosepiece : backward q...



SPECIFICATION

Specifications:

  • Optical system : finite optical system
  • Viewing head : siedentopf binocular viewing head,
  • Interpupillary distance range 48-75 mm, inclined at 30º
  • Eyepiece : wide field eyepiece wf10x/f.n. 20 mm
  • Nosepiece : backward quadruple nosepiece
  • Objective : finite achromatic objectives: 4x, 10x, 40x, 100x
  • Stage : double layer mechanical stage: 140 ×132 mm
  • Moving range: 75×45 mm
  • Focusing : coaxial coarse & fine adjustment, fine division
  • 0.001 mm, coarse stroke 37.7 mm/rotation, fine stroke 0.1
  • Mm/rotation, moving range 24 mm
  • Condenser : abbe n.a. 1.25 condenser with diaphragm
  • Illumination : external illumination 3w /led
