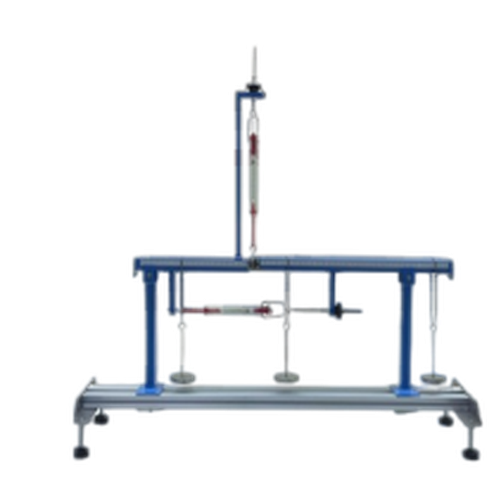

Bending Moments In A Beam

Order Code: 22236150.8

Category: General Lab Equipment II

Features Fits to the Structures platform for ergonomic use Unique beam cut and load cell system for an accurate measurement of bending moment Includes multiple loads for many combinations of loads including uniformly distributed loads (UDLs...



SPECIFICATION

Features

  • Fits to the Structures platform for ergonomic use
  • Unique beam cut and load cell system for an accurate measurement of bending moment
  • Includes multiple loads for many combinations of loads including uniformly distributed loads (UDLs)
  • Supplied with a storage tray to keep smaller items safe
  • Works with user-friendly software VDAS
  • Direct reading of bending moment at the cut for quick and simple experiments
  • User apply loads to hangers suspended along the beam, held between two supports
  • One support allows rotational movement only, acting as a pinned support and the other support allows translational movement, acting as roller support
  • The load cell at the cut at mid-span of the beam measures the bending moment due to the load
  • Includes a uniformly distributed load (UDL) that may be applied across the span of the beam for comparison of results with a single point load
  • The load cell connects to the USB interface hub of the Structures platform for computer display and data acquisition
  • Standard accessories with printed manual

Experiments can be Performed

  • Bending moment at the cut due to a varying single point load
  • Bending moment at the cut due to a moving single point load
  • Bending moment at the cut due to a uniformly distributed load
  • Influence lines and superposition

Aceessories

  • Warranty: 1 (One) year with services
  • Catalog submitted
  • Installation, Testing and Commissioning  performed by certified engineers
  • Training: Training by certified engineers at purchaser's premisesprovided by the bidder
