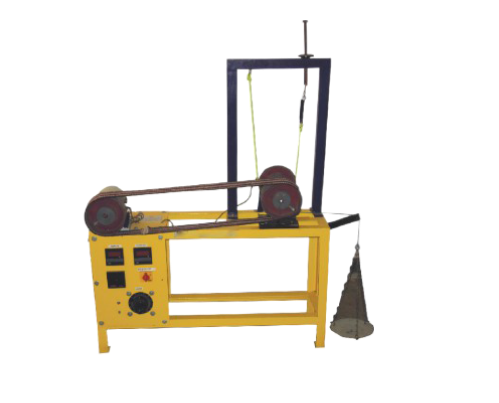

Scope:

• The Drive Systems experiments kit should introduce students to various types of belt, chain, and shaft drive systems.
• Belt and chain drive experiments should include to demonstrate the characteristics of different belt and chain systems with multiple velocity ratios. The efficiency should be calculated for varying loads for both the different velocity ratios and the different belt and chain systems allowing comparisons between the different systems to be observed. And also experiment should include to demonstrate the effect of belt tension and the effect of pulley lap.
• Power transfer, efficiency, and direction in a belt drive
• Power transfer and efficiency in a chain drive
• Input and output relationships of a universal coupling
• Prevention of vibration at high speed in a universal coupling
• Friction and angle of lap on a pulley

Technical specifications and components :
Features

• Clear and concise pictorial assembly instructions enhance the learning experience • Multiple experimental capability per self-contained kit
• Tool less assembly
• Works in conjunction with a multi-configurable base unit
• Supply with manual on a USB key
• With easily identifiable and durable storage tray
• Trays should have clear lids making it easy to see their contents
• Pictorial tray contents list to identify missing components easily
• Accompanied by a detailed manual with various practical exercises.

Components

• Fixed mount block
• Swing mount block
• U pulley assembly
• Timing pulley assembly
• Sprocket assembly
• Idler pulley assembly
• Universal joint connecting shaft assembly
• Universal joint fixed bearing housing assembly
• Universal joint moving bearing housing assembly
• 2 x spring balance mount
• 2 x hold down arm
• 2 x 300mm cord T-end
• 2x flexible magnetic
• whiteboard sheets 150 x 150mm
• 4 x knurled thumb screw M6 x 25mm
• 2 x knurled thumb screw M5 x 55mm
• Orange polyurethane round belt dia 6mm
• 0.25 “pitch plastic chain 1’ LG
• Timing tooth chain 0.2” pitch
• 2 x 250g weight sets on hanger

Dimensions,

• Tray
• Length: 400mm or higher
• Width: 300mm or higher

Operational instructions :

• A detailed instruction manual, covering the theory of drive systems
