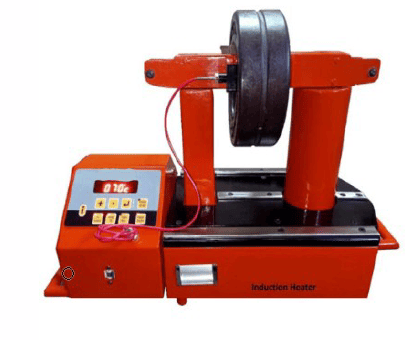

BEARING INDUCTION HEATER
Order Code: 24258295.1
Category: General Lab Equipment V
Key Features Efficient and reliable heating method for roller bearings and ring-shaped metal parts such as gearwheels, couplings, sprockets, and sleeves Automatic demagnetisation to ensure safe operation Auto cut-off with tem...
SPECIFICATION
Key Features
-
Efficient and reliable heating method for roller bearings and ring-shaped metal parts such as gearwheels, couplings, sprockets, and sleeves
-
Automatic demagnetisation to ensure safe operation
-
Auto cut-off with temperature hold function for precise thermal control
-
Microcontroller-based intelligent electronics
-
Four-step power settings: 25%, 50%, 75%, 100%
-
LED control panel for user-friendly operation
-
Dual mode operation: Time mode or Temperature mode
-
Thermal and electrical overload protection ensures long-term durability
-
Capable of heating sealed and pre-greased bearings
-
Foldable bearing support arms for flexible use
Technical Specifications
| Specification | Details |
|---|---|
| Workpiece Size Range | 60 mm (ID) to 650 mm (OD) |
| Maximum Workpiece Weight | 300 kg |
| Power Output | 12 kVA |
| Input Voltage | 440V |
| Power Control Levels | 25%, 50%, 75%, 100% |
| Temperature Control Range | 0 – 250°C |
| Maximum Temperature | 450°C |
| Temperature Accuracy | ±3°C |
| Time Control Range | 0 – 99 minutes |
| Residual Magnetism | < 2 A/cm |
| Main Unit Dimensions (L × W × H) | 860 × 350 × 470 mm |
| Support Space (W × H) | 250 × 255 mm |
| Weight (Main Unit) | 82 kg |
| Weight (Including Yokes) | 95 kg |
| Standard Yoke Sizes | 70×70×450 mm, 60×60×350 mm |
Included Components
-
Magnetic Temperature Probe
-
Thermal & Electric Overload Protection
-
Foldable Bearing Support Arms
Optional Accessories
-
Additional Horizontal Yokes:
-
30×30×450 mm
-
40×40×450 mm
-
50×50×450 mm
-
60×60×450 mm
-
