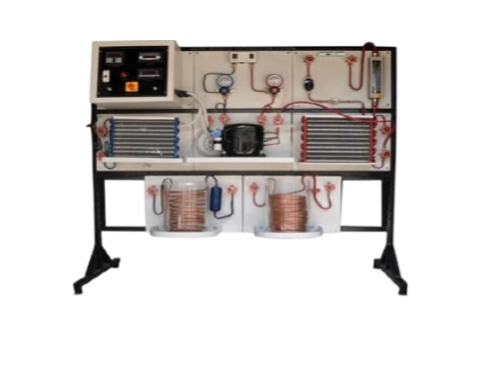

Basic Modular Refrigeration System Trainer

Order Code: 23246515.12.9

Category: General Lab Equipment II

Basic modular refrigeration system trainer Modular refrigeration and air conditioning components with electrical control modules and gauges. A two level aluminium frame with storage space trainer system electrical and refrigeration connections...



SPECIFICATION

  • Basic modular refrigeration system trainer
  • Modular refrigeration and air conditioning components with electrical control modules and gauges.
  • A two level aluminium frame with storage space trainer system electrical and refrigeration connections.
  • All electrical connections must be 4mm2 heavy duty terminals.
  • Connections made with electrical test leads and safety plugs.
  • Unit must come with instructional manual and student job sheets.
  • In addition, trainer components included:
  • A two level aluminium profile with storage base and mobile frame.
  • Hermetic compressor with shut off valves and connections, terminals for electrical connections.
  • Air- forced condenser including shut off valves and connections, terminals for electrical connections of the fun.
  • Flow control module including flow rate, filter drier, shut off valves and connections.
  • Pressure control module including high and low pressure gauges, double pressure switch, shut off valves and connections, terminals for electrical connection.
  • Power supply module including miniature circuit barker, start button, emergency button, warning lights, speed controller for fans and terminal for electrical connection.
  • Air cooling and dehumidifying finned exchanger, fan, capillary tube, shut off valves and connections, terminal for electrical connection.
  • Set of flexible pipes, test leads and capillary tubes.
