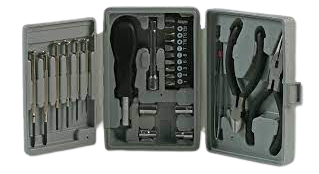

Basic Hand Tools Set

Order Code: 22235575.4.65

Category: General Lab Equipment I

BIHEXAGON SOCKET SET 26 pieces - metric sockets: 8,9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33 and 36 mm. Hex bit sockets: 4, 5, 6, 7, 8, 10, 12, 14, 17 and 19 mm. Philips sockets: 2, 3 and ...



SPECIFICATION

BIHEXAGON SOCKET SET

  1. 26 pieces - metric sockets: 8,9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33 and 36 mm.
  2. Hex bit sockets: 4, 5, 6, 7, 8, 10, 12, 14, 17 and 19 mm.
  3. Philips sockets: 2, 3 and 4.
  4. Spark plug sockets: M14 and M10.
  5. Chrome molybdenum screwdriver bits: 9 and 14 chemically blacked.
  6. Accessories:
    1. Extension bars: 75, 125, 250 mm.
    2. Universal-joint.
    3. T-handle.
    4. Swivel handle and black rubber ratchet handle.
    5. Robust fitted case with magnetic parts tray, security padlock and cushion grip handle.
  7. SCREW DRIVER SET
  8. Handle material is exceptionally resistant to hydrocarbon and other oils.
  9. Flanged tang molded inside handle.
  10. Chrome plated vanadium steel.
  11. Short blasted tip.
  12. Tray or container.
    1. Flared and parallel tips each of:
    2. No. Blade BladeBlade
    3. (piece) width thickness length
    4. (mm) (mm) (mm)
    5. 2 5.5 2 100
    6. 2 6.5 1.2 125
    7. 2 6.5 1.2 150
    8. 3 8.0 1.2 150
    9. 3 8.0 1.6 200
    10. 3 10.0 1.6 200
    11. 3 12.0 2.0 250
  13. Philips or pozidrive tips:
    1. No. Trip No. Blade Blade
    2. (piece) diameter length
    3. (mm) (mm)
    4. 2 PZ1 5.0 30
    5. 2 PZ2 6.0 30
    6. 2 PZ0 4.0 75
    7. 2 PZ1 5.0 75
    8. 2 PZ1 5.0 100
    9. 3 PZ2 6.0 125
    10. 3 PZ3 8.0 150
    11. 3 PZ4 9.9 200
    12. * PZ = ISO code 2,380 and 4,757
  14. 3/8" square drive insert bit set (17 pieces)
    1. It is a bit adapter set and can be used with socket accessories or torque wrenches.
    2. House or container made of steel box and bits fitted with a form or plastic insert.
    3. Bit set consists of:
    4. Universal bit adapter.
    5. Spinner handle.
    6. 4 metrics hexagon bits, 3, 4, 5, 6 mm.
    7. 5 A/F hexagon bits 3/32, 1/8, 5/32, 3/16, _ inches.
    8. 3 long reach slotted screw insert bits 3, 4, 5.5 mm.
    9. 3 pozidrive bits PZ1, PZ2, PZ3.
    10. Container or box with cover.
  15. INSULTATED PLIERS SET
    1. They are for electricians used.
    2. High quality steel in good forging.
    3. Hot forged for strength and durability.
    4. Smooth action.
    5. Anti-slip moulding handle.
    6. Insulated handle.
    7. Pliers set are supplied the same brand consisting of:
      1. 5 multi-grip plier jaw or channel lock pliers.
      2. 240 mm. long max. jaw opening more 45 mm.
      3. Slip joint with more than 6 positions.
      4. 5 combination pliers.
      5. Serrated jaw with cutting edge.
      6. Max. wire cutting 1.6 mm.
      7. 180 mm. long.
      8. 5 snipe nose pliers or long nose pliers.
      9. Taper straight nose with serrated jaw and side cutter
      10. Max. wire cutting 1.6 mm.
      11. 200 mm. long.
      12. 5 diagonal cutter pliers or side cutter pliers.
      13. Fine sharpened for cutting copper wire.
      14. Max. wire cutting 1.6 mm.
      15. 160 mm. long.
      16. 5 wire stripper pliers.
      17. Spring release.
      18. Adjustable screw with lock nut for repetition work.
      19. Strip wire cap. 0.5 - 6 mm.
      20. 160 mm. long.
      21. 5 end cutter pliers.
      22. Finely sharpened for cutting copper wire.
      23. Max. wire 1.6 mm.
      24. 160 mm. long (approx.).
      25. Cantilever tool box.
      26. 3 tier construction.
      27. Double handle closing 5 compartments.
  16. HAMMER TOOL SET
    1. Steel Hammer
    2. Drop forging hammer processing.
    3. Wooden or fiberglass handles.
    4. Hammer head fixing (wooden handle).
    5. 1-ball pein hammer size 4 Oz. 270 mm. long 65 head width 18 head thick.
    6. 1-ball pein hammer size 16 Oz. 350 mm. long 100 head width 29 head thick.
    7. 1-joiners warrington hammer No.0 size 8 Oz. 270 mm. long 105 head width 25 head thick.
    8. Steel claw hammer (for nailing) size 16 Oz. 320 mm. long 130 head width 32 head thick.
    9. Club hammer size 4 lbs. 240 mm. long 100 head width 42 head thick.
  17. Soft Face Hammer
    1. 1-Copper/Copper hammer size 32 Oz. hammer No.1 face dia.32, 280 mm. long.
    2. 1-Nylon soft face hammer size 24 Oz. face dia. 38, length 300 mm.
    3. 1-Rubber mallet size 24 Oz. head size 74x127 mm, length 380mm.
  18. Cold chisels
    1. 2-cold chisels blade width 10 mm. length 150 mm.
  19. Item Code Item Description / Specifications
    1. 2-cold chisels blade width 16 mm. length 200 mm.
    2. 1-pinch bars blade width 25 mm. length 450 mm.
  20. Punches
    1. 2-center punches trip O 6 mm. length 150 mm.
    2. 2-taper punches trip O 6 mm. length 150 mm.
    3. 2-automatic center punch
      1. Pushing the end cap cause a spring to release for impact action.
      2. Impact is adjusted by rotation of the knurl.
      3. Trip O 6 mm. length 140 mm.
  21. Hacksaw 2 sets.
    1. Light weight construction resistant to oxidising.
    2. Unique design giving increased blade tension.
    3. Front hand rest.
    4. Hand guard protection.
    5. Die cast Aluminum handle and square section frame.
    6. Cantilever blade adjustment.
    7. Blade length 300 mm. standard size.
    8. 24 blades for 18 TPI (Teeth per Inch) HSS.
    9. 24 blades for 24 TPI HSS.
  22. Files with handles.
    1. 2-half round files 200 mm. long.
    2. 2-round files 200 mm. long.
    3. 2-flat files (corse) 200 mm. long.
    4. 2-flat files (fine) 200 mm. long.
    5. 2-square files 200 mm. long.
  23. Pullers
  24. They are suitable for moving gears bearings sprockets and pulleys which be strong gripping and made of drop forged from high quality steel and heat treated.
    1. Twin and tripple leg pullers.
    2. Internal and external used.
    3. 1-twin leg puller spread 150 mm. reach 80 mm.
    4. 1-twin + triple leg spread 200 mm. reach 140 mm.
    5. 1-bearing puller kit.
    6. Bearing separators fit behind bearing where puller jaw cannot enter.
    7. All kits supplied in a metal case.
    8. kit content:
    9. Bearing separator 35 - 140 mm. capacity used with 2-leg puller.
    10. Beam, screw, thrust nut and thrust race.
    11. Main rods, nuts and washers (2).
    12. 125 mm. extension rods (2)
    13. Extension rods (4)
    14. Separated.
  25. Lock grip plier.
  26. It is serrated curved jaws with power full locking mechanism and quick release lever and froged jaws are harded, high quality housing.
    1. 2-curves jaw lock grip pliers 190 mm. length 42 mm. jaw capacity.
    2. 2-curves jaw lock grip pliers 235 mm. length 63 mm. jaw capacity.
    3. 2-straight jaw lock grip pliers 190 mm. long 42 mm. jaw capacity
    4. 235 mm. long 63 mm. jaw capacity.
  27. 6 wires crimpers.
    1. Color coded crimping.
    2. Screw shear cuts terminal screw.
    3. Crimp ignition wire cutter.
    4. General purpose wire cutter.
    5. Wire stripping range 0.70 to 6 mm. O wire.
    6. Rubber insulated handle.
  28. A 5-drawer roller cabinet.
    1. Heavy duty plate side handles.
    2. Ball bearing slides.
    3. 5-drawers with sliding rail with key.
    4. Drawer dimension
    5. width depth height
    6. (mm.) (mm.) (mm.)
    7. 2 drawers (with 580 410 52 9 compartments)
    8. 2 drawers 580 410 100
    9. 1 drawer 580 410 160
    10. 2 swivels and 2 fixed castors dia. 125 mm.
    11. Top can be mounted to form 25 mm. deep tray reversed to provide a smooth for work table.
