Basic Digital Logic board
Order Code: 24257358.1.91
Category: General Lab Equipment V

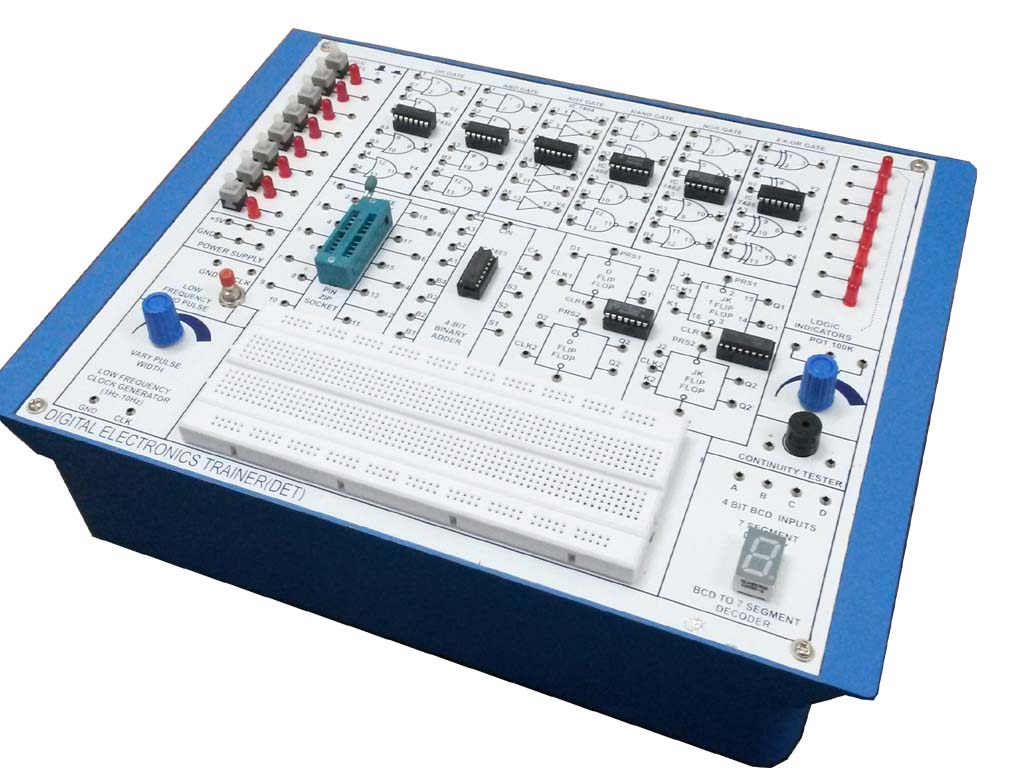

Basic Digital Logic board It introduces the basic logic gates (AND, OR, NOT, NAND, XOR) used in digital electronics. These are used to investigate the laws of logical operations (de Morgan's law, associative law and di...
SPECIFICATION
-
Basic Digital Logic board
-
It introduces the basic logic gates (AND, OR, NOT, NAND, XOR) used in digital electronics.
-
These are used to investigate the laws of logical operations (de Morgan's law, associative law and distributive law) and non-feedback logic circuits (switch networks).
-
Then, simple flip-flop circuits with feedback are assembled to study storage of information.
Technical Data:
-
The board includes the following ü 8 x toggle switches
-
4 x push buttons
-
1 x RC circuit for building a multivibrator ü 4 x outputs Gates:
-
4 x AND ü 4 x OR
-
12 x NOT ü 4 x NAND
-
4 x XOR
-
2 x flip-flops Accessories included
-
1 x Power supply unit (mains adaptor), 12 V AC
-
1 x Connecting leads, 2mm plugs, 4cm, blue, set of 5
-
1x Connecting leads, 2mm plugs, 15cm, blue, set of 5
-
1x Connecting leads 2mm plugs, 30cm, blue, set of 5
