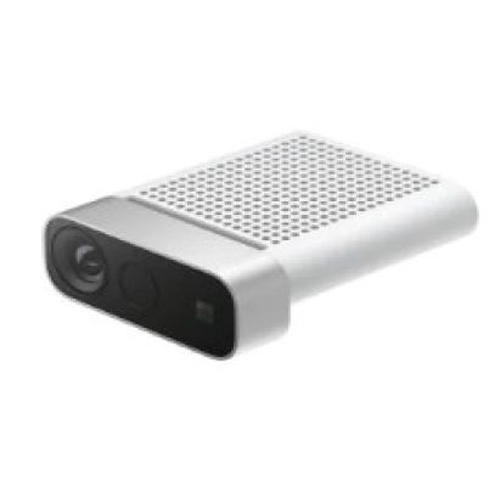

Azure Kinect DK

Order Code: 19203408.2.1

Category: General Lab Equipment III

USB connection Weight less than 500g Dimensions 103 x 39 x 126 mm or less Megapixel Time-of-Flight Depth Camera using the Yeats image sensor and working mode expressed in resolution / aspect ratio / second / generation images Depth / T...



SPECIFICATION

  • USB connection
  • Weight less than 500g
  1. Dimensions 103 x 39 x 126 mm or less
  2. Megapixel Time-of-Flight Depth Camera using the Yeats image sensor and working mode expressed in resolution / aspect ratio / second / generation images Depth / Time of Exposure:
    1. Mode 1: 640x576 / 75 ° x65 ° / 0, 5, 15, 30 / 0.5 - 3.86 m / 12.8 ms
    2.  Mode 2: 320x288 / 75 ° x65 ° / 0, 5, 15, 30 / 0.5 - 5.46 m / 12.8 ms
    3. Mode 3: 512x512 / 120 ° x120 ° / 0, 5, 15, 30 / 0.25 - 2.88 m / 12.8 ms
    4. Mode 4: 1024x1024 / 120 ° x120 ° / 0, 5, 15 / 0.25 - 2.21 m / 20.3 ms
    5. Mode 5 (Passive IR): 1024x1024 / - / 0, 5, 15, 30 / - / 1.6 ms
  3. - RGB color mode with the following working modes, expressed in Resolution (HXV) format / Equivalence H: V / Data Format / Seconds (FPS) / Nominal Viewing Range (FV) (HxV)
    1. Mode 1: 3840x2160 / 16: 9 / MJPEG / 0, 5, 15, 30 / 90x59
    2. Mode 2: 2560x1440 / 16: 9 / MJPEG / 0, 5, 15, 30 / 90x59
    3. Mode 3: 1920x1080 / 16: 9 / MJPEG / 0, 5, 15, 30 / 90x59
    4. Mode 4: 1280x720 / 16: 9 / (MJPEG / YUY2 / NV12) / 0, 5, 15, 30 / 90x59
    5. Mode 5: 4096x3072 / 4: 3 / MJPEG / 0, 5, 15 / 90x74.3
    6. Module 6: 2048x1536 / 4: 3 / MJPEG / 0, 5, 15, 30 / 90x74.3 - Incorporates the Inertial Measurement Unit (IMU) containing accelerometer and gyroscope with simultaneous 1.6 kHz The frequency 208 Httë transferring them to the computer
  4. - Include a field of 7 circular microphones, identified as USB audio class 2.0, with performance:
    1. Sensitivity: -22 dBFS (94 dB SPL, 1 kHz)
    2. Noise signal ratio> 65 dB
    3. Acoustic overload: 116 dB
    4. Supply from USB port
    5. Expense 5.9 W.
