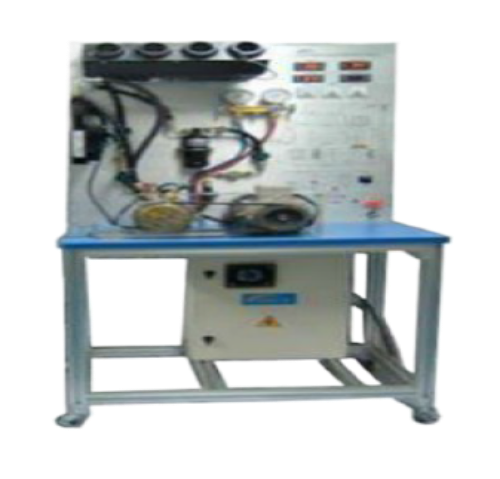

Automotive Air Conditioning Demonstrator Trainer

Order Code: 21224591.9.41

Category: General Lab Equipment II

Technical parameter Size: 1000mm × 1000mm × 1800mm (length x width x height)   Driving power supply: three phase four wire (three phase five wire 380 ± 10% V 50 Hz)   External power supply: A.C. 220V &...



SPECIFICATION

Technical parameter

  • Size: 1000mm × 1000mm × 1800mm (length x width x height)
  • Driving power supply: three phase four wire (three phase five wire 380 ± 10% V 50 Hz)
  • External power supply: A.C. 220V ± 10% 50Hz
  • Operating voltage: 12V DC
  • Refrigerant: R134a, Operating temperature: –40ºC to +50ºC
  • High pressure gauge: 0 – 3.5 MPa,  Low pressure gauge: 0 – 1.5 MPa
  • Three-phase asynchronous motor
  • Voltage: A.C. 220V/380V
  • Power: 2.2 KW
  • Rotation speed: 1420 r/min, Vacuum pump:
  • Voltage: A.C. 220V 50 Hz
  • Power: 120 W
  • Rotation speed: 1000 r/min.
  • Basic configuration(unit)   Detection control panel (protected by 3 mm-thick organic glass) ,Ignition switch ,Signal simulator ,High pressure gauge, Low pressure gauge ,Digital thermometer at the inlet ,Digital thermometer at the outlet ,Controller assembly, Evaporator assembly ,Compressor assembly ,Expansion valve assembly ,Dryer assembly ,Blower assembly, Condenser ,Three-phase asynchronous motor ,Cooling fan, Intelligent fault-setting and appraisal system ,Movable framework (with self-retention wheels)
