Features:

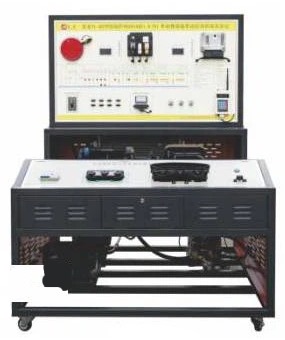

• The trainer is designed to teach students theoperation, fault finding, maintenance and repair ofautomotive air conditioning systems.

• It is compriseof acomplete real-time automotive air conditioningsystem on an alloy frame bench mounting.

• It is operate on R134a refrigerant and allow the use of standard R134amanifold gauges.

• The compressor is driven by an asynchronous AC electric motor and the complete unit must have an internal Residual Current Device for additional operator’s safety.

• The trainer is bench mounted and fitted with 12V control system.

• Student tool kit and test & service equipment included.

• The base of the training platform is made of steelstructure or aluminum profile, the surface istreated by spraying process, with self locking caster device for flexible movement

• Learning capabilities : Blocked Thermostatic Expansion Valve, Blocked Drier, Compressor Fault, Poor Condensing, Controller Fault, Engine Fault

Technical Specification:

• Electric motor nominal 1500rpm with digitaloverload cut out

• Five-cylinder open type compressor with duty up to 4.5Kw at maximum rated speed

• The compressor is magnetic clutch operated,and protected with digital intelligent monitoringsafety system like all modern generation car

• DC 12V 20A SMPS control system

• Air cooled condenser and fan with 12V dc motor

• Evaporator fitted with four speed 12 dc fan andthermostatic expansion valve

• A/C switch and blower switch

• Electronic thermostat, adjustable fortemperature control

• Transformer to provide 12V automotive controlcircuit

• Electrical control box with ignition key,emergency button, on/off switch and residualcurrent device

• High/low pressure gauge

• Refrigerant pressure can be controlled bykeypad and observed/monitor in the

• LCDinformation display

• Digital intelligent safety monitoring with autoprotection like all modern hybrid and non-hybridmotor car

• Standard accessories with printed operation manual
