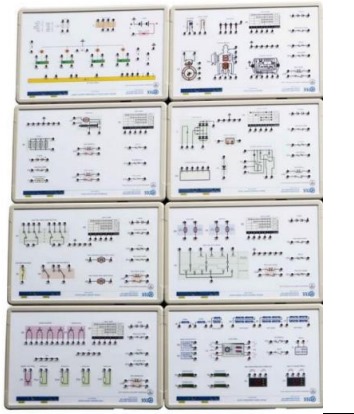

Automobile electronic circuit simulation kit

Order Code: 24257326.3

Category: General Lab Equipment V

Training Kit featuring circuit diagrams, jigsaws, and orifice plate connections for practical training of different experiment module Training module that the kit should covered are:  Basic electrical technology circuit Preheat...



SPECIFICATION

Training Kit featuring circuit diagrams, jigsaws, and orifice plate connections for practical training of different experiment module
Training module that the kit should covered are:

  • Basic electrical technology circuit

  • Preheating start control circuit Battery charging control circuit Ignition control circuit

  • Lighting control circuit (Signal circuit

  • Front wiper control circuit

  • Power switch window control circuit

  • Air conditioning control

  • Power switch seat control

  • Fuel injection control circuit

  • Commutation control circuit of DC motor

  • H bridge control circuit of DC motor

  • •Power switch battery application circuit

  • Ignition control circuit of gasoline engine
