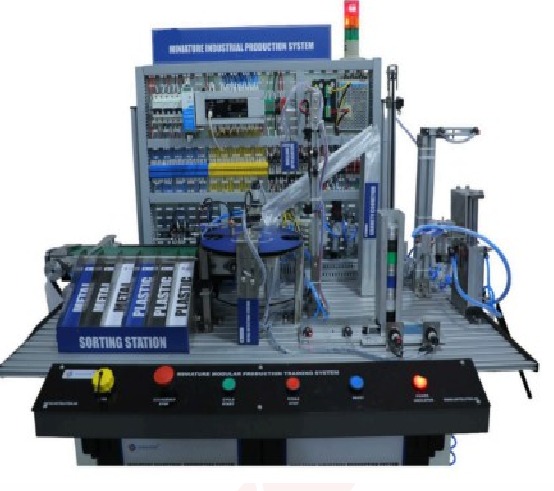

Automatic Storage and Sorting Trainer

Order Code: 24258143.5

Category: General Lab Equipment V

Technical Parameters: Base Plate: Aluminum Function Start, Stop Switch & Emergency Switch Conveyer Belt Size: 540mm - 560mm Number of Conveyer Belt: 02 Set Pneumatic Cylinder. 03 Pcs Pneumatic motor: 01Pcs. Capacity of motor: 0....



SPECIFICATION

Technical Parameters:

  • Base Plate: Aluminum
  • Function Start, Stop Switch & Emergency Switch
  • Conveyer Belt Size: 540mm - 560mm
  • Number of Conveyer Belt: 02 Set
  • Pneumatic Cylinder. 03 Pcs
  • Pneumatic motor: 01Pcs.
  • Capacity of motor: 0.15-0.7Mpa (Mega Pascal, Rotation:180°)
  • Optical Fiber Sensor:02 Nos
  • Magnetic Proximity Sensor:19 Nos
  • Solenoid Valve: 5 Nos
  • Warehouse Limit Switch: 21 nos
  • HMI: Display units of warehouse
  • HMI Display Size: 7 inch
  • Tray Movement 3 axis (X, Y, Z)
  • X-axis movement: 30 inches
  • Y-axis movement: 4.5 inch
  • Z-axis movement: 15 inches
  • Cabinet control circuit power supply DC24V ,3Amp
  • Temperature: 10-40: Humidity: ≤90%
  • Air pressure: 0.4-0.6Mpa
  • Machine capacity: ≤0.5KVA
  • Over Load Current Protection
  • Earth Leakage Protection
  • Input Power: Single Phase, three wire AC
  • 220v ±10%, 50/60Hz
  • PLC with Expansion Module

         - Main Supply: Single Phase, 220v ±10%, 50/60Hz
         - PLC Input: 54

        - PLC Output: 10 Nos (Relay)
        - Analog Output: 02 Nos
        - Communication Port: 2 nos (RS-232)
        - PLC Output Relay Type
       - Operating Voltage: DC 24V
       - PLC Programming Language: Ladder, Functional Flow Block Diagram
       - PLC Software operating system: XP, Windows 7, Windows 8
      - PC: Intel Core i5 (13th Generation or above) processor, 16GB RAM, 1TB HDD, 512GB SSD, 19 Inch Monitor, Keyboard and Mouse.
Accessories:
(a) English User Manual
(b) PC To PLC Communication Cable
(c) Software Disc: 01 set

- Warranty: 2 years with service and spare parts
- Installation, Testing and Commissioning should be performed by expert engineer(s)
- Must arrange a five-day-long training at the point of delivery and provide training to at least five participants
Must provide an experiment manual that covers a detailed step-by-step process for conducting each experiment.
