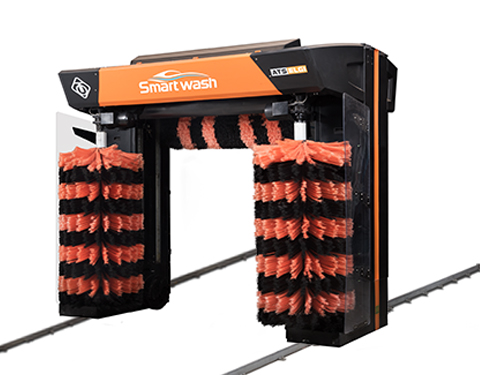

Automatic Car Washer -Smartwash
Order Code: AA001
Category: Automatic Washing System
Features & Benefits Stainless Steel precision nozzles Wax to improve reflective index Optimized flow control in side and top blower Increased Productivity( 3-7 minute operation time) Reduced water consumption ( 85 liters to 130 lite...
SPECIFICATION
Features & Benefits
- Stainless Steel precision nozzles
- Wax to improve reflective index
- Optimized flow control in side and top blower
- Increased Productivity( 3-7 minute operation time)
- Reduced water consumption ( 85 liters to 130 liters per car )
- Reduced labor costs ( Only one operator needed )
Specifications
|
SPECIFICATIONS |
SMART WASH |
|
|---|---|---|
|
NO OF BRUSHES |
Vertical brush |
2 Nos |
|
Horizontal brush |
1Nos |
|
|
RECOMMENDED BAY DIMENSION |
Length |
10000 mm |
|
Width |
4600 mm |
|
|
Height |
5000 mm |
|
|
MAX. VEHICLE ACCESS |
Length |
5200 mm |
|
Wid |
2000 mm |
|
|
Height |
2300 mm |
|
|
WASHING SYSTEM |
PLC AUTOMATION |
|
|
BRUSH MATERIAL |
Polyethylene |
|
|
SHAMPOO / WAX MIXING CONTROLS |
Venturi system |
|
|
DRYING |
Type |
Automatic |
Variants
|
Parameters |
Smart Wash HP |
Smart Wash FP |
Smart Wash SP |
Smart Wash EP |
|---|---|---|---|---|
|
High Pressure Pre Wash |
Yes |
No |
No |
No |
|
Body Wash |
Yes |
Yes |
Yes |
Yes |
|
Wheel Wash |
Yes |
Yes |
No |
No |
|
Drying |
Yes |
Yes |
Yes |
No |
|
Under Chassis Washer (Optional) |
Yes |
Yes |
Yes |
Yes |
|
Shampoo |
Yes |
Yes |
Yes |
Yes |
|
Wax |
Yes |
Yes |
Yes |
No |
|
HMI Touchscreen Operating Panel |
Yes |
Yes |
Yes |
Yes |
|
Cycle Time Per Car, Min |
6 – 7 |
5 – 6 |
5 – 6 |
3 – 4 |
|
Water Consumption Per Car, L |
120 – 130 |
85 – 100 |
85 – 100 |
85 – 100 |
|
Power Supply |
3ph 415VAC( +10%, -15%), 50Hz |
3ph 415VAC( +10%, -15%), 50Hz |
3ph 415VAC( +10%, -15%), 50Hz |
3ph 415VAC( +10%, -15%), 50Hz |
|
Connected Load |
29.5/22 HP/kW |
22/16.5 HP/kW |
21.5/16 HP/kW |
5.5/4 HP/kW |
|
Maximum Operating Load |
18/13.5 HP/kW |
18/13.5 HP/kW |
18/13.5 HP/kW |
5.5/4 HP/kW |
|
Power Consumption |
0.8 |
0.7 |
0.7 |
0.2 |
|
Air Requirement |
7 bar/ 5 CFM |
7 bar/ 5 CFM |
7 bar/ 5 CFM |
7 bar/ 5 CFM |
