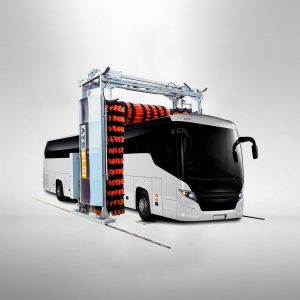

Automatic Bus Washer - Smartwash Jumbo
Order Code: AA006
Category: Automatic Washing System
Features 3-brush system (1 horizontal and 2 vertical brushes) Safety lock against brush fall due to belt breakage Sensor to detect belt loosening and belt cut Precisely senses the windscreen for washing without damaging the front extended...
SPECIFICATION
Features
- 3-brush system (1 horizontal and 2 vertical brushes)
- Safety lock against brush fall due to belt breakage
- Sensor to detect belt loosening and belt cut
- Precisely senses the windscreen for washing without damaging the front extended mirrors
- Overlapping brushes at the front and rear to avoid dead-spots for washing efficiency
- A contour following system
- Optimally placed water and shampoo nozzles that cover the vehicle with a minimum number of nozzles
Specifications
|
S.No |
PARAMETERS |
UNIT |
DATA |
|---|---|---|---|
|
1 |
Model |
— |
ABW 4M (Smartwash Jumbo) |
|
2 |
Machine Type |
— |
Roll Over Gantry |
|
3 |
Application |
— |
Body Wash – Bus |
|
4 |
Operating Temperature |
º C |
5 – 50 |
|
5 |
Max Bus Length Washable |
mm |
15000(49.2 ft approx.) |
|
6 |
Max Bus Width Washable |
mm |
2900(9.5 ft approx.) |
|
7 |
Max Bus Height Washable |
mm |
4000(13 ft approx.) |
|
8 |
Water Pump Operating Pressure |
bar |
2.5±0.5 |
|
9 |
Shampoo Pump Operating Pressure |
bar |
4.5±0.5 |
|
10 |
No. of Brushes |
Nos |
3(2 Vertical& 1 Horizontal) |
|
11 |
Control system |
— |
PLC |
|
12 |
Monitoring System |
— |
HMI |
|
13 |
Operating system |
— |
Push buttons |
|
14 |
H.Brush & V.Brush pressure sensing |
— |
Precise pressure sensing using power transducer |
|
15 |
H.Brush movement |
Contour following type |
|
|
16 |
Bus profile/edge sensing |
— |
Photo sensor |
|
17 |
Total Number of Wash Program |
Nos |
3 |
|
18 |
Brush material |
— |
Polyethylene |
|
19 |
No of Water Nozzles |
Nos |
14(10 Side & 4 Top) |
|
20 |
No of Shampoo Nozzles |
Nos |
9(6 Side & 3 Top) |
|
21 |
Precise dosing of shampoo |
— |
Using electronic operated dosing pumps |
|
22 |
Pump Dry Run Protection control |
— |
Pressure Switch |
|
23 |
Input Supply Voltage |
V |
3Ø , 415+10%/-15% |
|
24 |
Frequency |
Hz |
50±5% |
|
25 |
Total connected |
kw |
4.45 |
|
26 |
Max operational load |
kw |
4.45 |
|
27 |
Approx. weight |
Kg |
2000 |
Variants
3-Brush System
- Roll-over Bus Washer
- Overlapping Vertical Brushes
- Contour Following Horizontal Brush
- PVDF Nozzles for longer life
- Under-Chassis Washer (Optional)
2-Brush System
- Roll-over Bus Washer
- Overlapping Vertical Brushe
- High Pressure Oscillating Top Nozzles Fixed/Contour Following (Optional)
- PVDF Nozzles for longer life
- Under-Chassis Washer (Optional)
